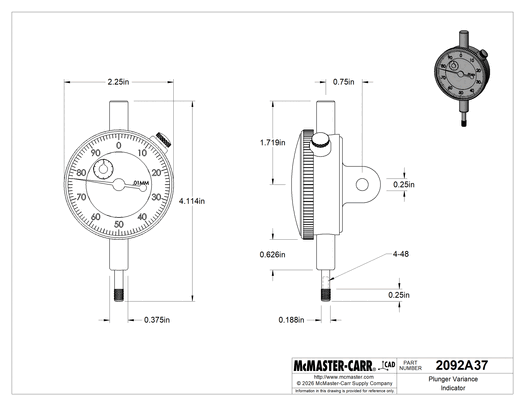

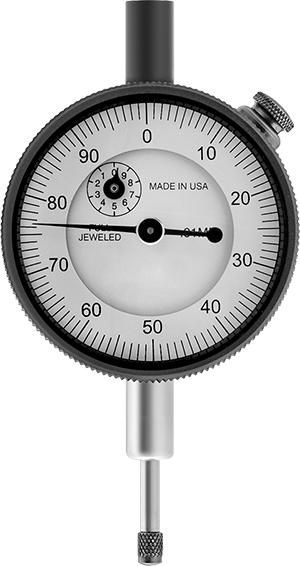

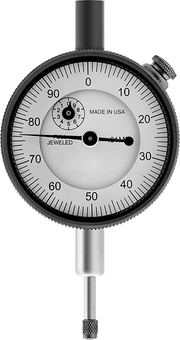

McMaster 2092A37 Plunger Variance Indicator, with Certificate, Continuous Dial, 0-10mm Distance Measured
Original price
$338.64
-
Original price
$338.64
Original price
$338.64
$338.64
-
$338.64
Current price
$338.64
For direct measurements, these indicators have a continuous dial numbered clockwise around the face. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles. They have highly sensitive, wear-resistant jeweled bearings for a longer service life. All come with a calibration certificate traceable to NIST that states they’ve passed a test for accuracy.
Lifting Lever — Remove the spindle cap and install a lifting lever for easier lifting of the indicator spindle.
| Mount Type | Lug, Stem |
| Bearing Type | Jeweled |
| Distance Measured | 0 mm to 10.000 mm |
| Measuring Increments | 0.01 mm |
| Accuracy | ±0.01 mm |
| Dial Indicator Size | AGD Group 2 |
| Mounting Stem Diameter | 3/8" |
| Mounting Lug Hole Diameter | 1/4" |
| Type | Continuous |
| Face Movement | Rotating |
| Face Color | Yellow |
| Hand Color | Black |
| Hand Direction | Clockwise |
| Diameter | 2 1/4" |
| Reading Inch | 0-100 |
| Diameter | 3/16" |
| Length | 1/4" |
| Mounting Thread Size | 4-48 |
| Material | Steel |
| Certificate Type | Calibration Certificate Traceable to NIST |
| Container Type | Case |
| Dial Indicator Type | Plunger |
| Display Type | Dial |
| System of Measurement | Metric |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 901730.8000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
| Related Product | Lifting Lever |
