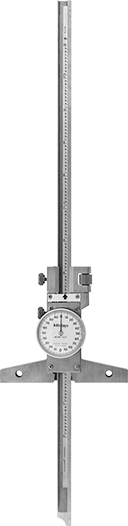

McMaster 2105A42 Mitutoyo Dial Depth Gauge, Model 527-313-50, 0 to 12" Measuring Range
Original price
$697.07
-
Original price
$697.07
Original price
$697.07
$697.07
-
$697.07
Current price
$697.07
Check depth measurements at a glance. These gauges have a dial that displays how far their blade extends into slots, holes, and grooves. Designed for frequent use, they’re often found in machine shops and other areas where digital measurements and data transfer aren’t required.
7" Base Extension—Base extensions increase the base width of your depth gauge to measure large-diameter holes.
12" Base Extension—Base extensions increase the base width of your depth gauge to measure large-diameter holes.
| Distance Measured | 0" to 12" |
| Accuracy | ±0.0015" |
| Measuring Increments | 0.001" |
| Tip Width | 0.16" |
| Width | 0.43" |
| Material | Stainless Steel |
| Width | 4" |
| Length | 11/16" |
| Material | Stainless Steel |
| Overall Height | 16 1/8" |
| Measurement per Dial Revolution | 0.2" |
| Dial Face Color | White |
| Manufacturer | Mitutoyo |
| Manufacturer Model Number | 527-313-50 |
| Display Type | Dial |
| Measures | Depth |
| System of Measurement | Inch |
| Country of Origin | Japan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 901730.8000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
| Related Products | 7" Base Extension |
