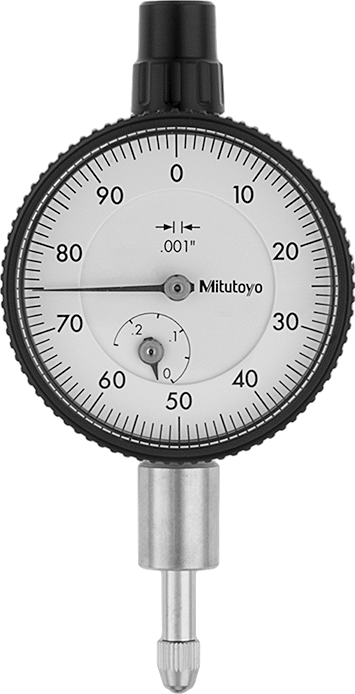

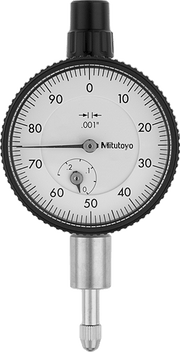

McMaster 2246A42 Mitutoyo Plunger Variance Indicator, with NIST Certificate, Continuous Dial, Model Number 1410A-10
Original price
$374.75
-
Original price
$374.75
Original price
$374.75
$374.75
-
$374.75
Current price
$374.75
These indicators come with a calibration certificate traceable to NIST that states they’ve passed a test for accuracy. They have a continuous dial numbered clockwise around the face for direct measurements. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles.
Jeweled Bearing — Jeweled bearings are more sensitive and wear resistant than plain bearings for a longer service life.
| Mount Type | Lug, Stem |
| Bearing Type | Jeweled |
| Distance Measured | 0" to 0.250" |
| Measuring Increments | 0.001" |
| Accuracy | ±0.001" |
| Dial Indicator Size | AGD Group 1 |
| Mounting Stem Diameter | 3/8" |
| Mounting Lug Hole Diameter | 1/4" |
| Type | Continuous |
| Face Movement | Rotating |
| Face Color | White |
| Hand Color | Black |
| Hand Direction | Clockwise |
| Diameter | 1 5/8" |
| Reading Inch | 0-100 |
| Diameter | 0.118" |
| Length | 0.587" |
| Mounting Thread Size | 4-48 |
| Material | Carbide |
| Manufacturer Model Number | 1410A-10 |
| Certificate Type | Calibration Certificate Traceable to NIST |
| Container Type | Cardboard Box |
| Dial Indicator Type | Plunger |
| Display Type | Dial |
| Manufacturer | Mitutoyo |
| System of Measurement | Inch |
| Country of Origin | Japan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 903180.8080 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
