McMaster 2291A41 Liquid-Level Tape Measure for Liquid in Tank
McMaster 2291A41 Liquid-Level Tape Measure for Liquid in Tank. 33 Feet/10 M Long Stainless Steel Blade
Also known as oil-gauging tapes, use these tape measures to check the level of oil and other fluids in deep, large containers such as tanks and vats.

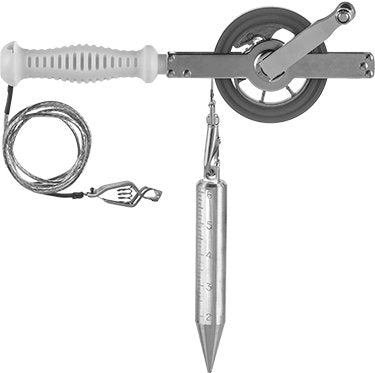

Measures Liquid in Tank—Liquid in tank tape measures have a cylindrical plumb bob that sinks to the bottom of the tank. The blade indicates the distance to the surface of the liquid.
Stainless Steel—Stainless steel blades are corrosion-resistant. Use them in clear and dark liquids. They have wear-resistant etched markings.
Rubber Blade Wiper—Strip excess liquid off of a blade as it is reeled in. These wipers fit all Liquid-Level Tape Measures.
|
Measures
|
Liquid in Tank |
|
Reading Direction
|
Bottom to Top |
|
System of Measurement
|
Inch/Metric |
|
Length
|
33 ft./10 m |
|

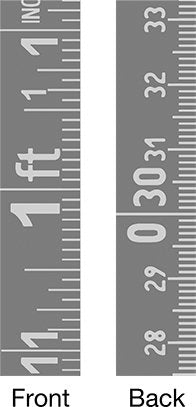

Graduation Location—Marks (Numeric Increments)
|
Front Right Side—16ths (1") Back Right Side—Millimeters (1 cm) |
|
Width
|
1/2" |
|
Thickness
|
0.008" |
|
Graduation Mark Type
|
Etched |
|
Blade Material
|
Stainless Steel |
|
Orientation
|
Vertical |
|
Plumb Bob
|
|
|
Material
|
Brass |
|
Height
|
6 3/4" |
|
Diameter
|
1" |
|
Weight
|
20 oz. |
|
Shape
|
Cylinder |
|
Reel Material
|
Chrome-Plated Steel |
|
Country of Origin
|
Germany |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
ECCN
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
Not Compliant |
|
Schedule B Number
|
901780.0000 |
|
USMCA Qualifying
|
No |
