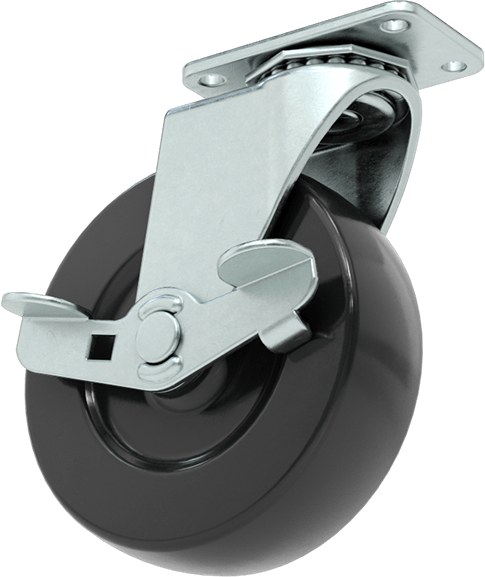

McMaster 2358T63 Static-Control Plate Caster, Swivel with Brake and 3" Diameter x 15/16" Wide Black Solid Rubber Wheel
UPC: | Harmonization / Schedule B : 8716.90.3000
Country of Origin: United States | Shipping Weight: 0.68 lbs
Original price
$54.22
-
Original price
$54.22
Original price
$54.22
$54.22
-
$54.22
Current price
$54.22
The wheels dissipate static to protect sensitive electronic equipment from electrostatic discharge. Wheels are rubber for shock absorption.
Swivel Casters — Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake — Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.
Sleeve — Sleeve wheel bearings prevent wear to the wheel bore.

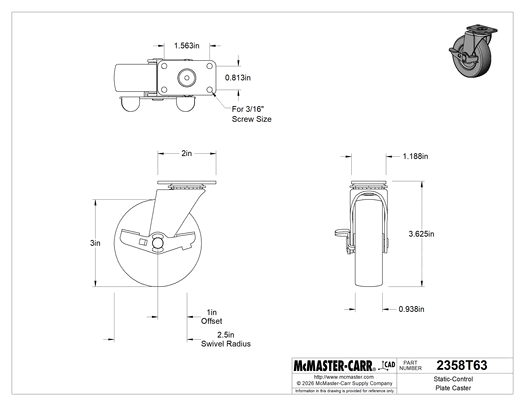

| Length | 2" |
| Width | 1 3/16" |
| Style | 1 |
| Nonmarking Wheels | No |
| Wheel Color | Black |
| Wheel Type | Solid |
| Hardness Rating | Soft |
| Caster Type | Swivel |
| Brake/Lock Type | Wheel Brake |
| Diameter | 3" |
| Width | 15/16" |
| Number of | 1 |
| Mount Height | 3 5/8" |
| Weight Capacity per Caster | 100 lb. |
| Performance | Static Control, Static Dissipative |
| Surface Resistivity | 1× 10^6 ohm/sq. |
| Type | Plain |
| Material | Steel |
| Seal Type | Open |
| Plain Type | Sleeve |
| Location | Right Side |
| Activation | Foot Pedal |
| Caster Swivel Construction | Kingpin |
| For Screw Size | 3/16" |
| For Surface Type | Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
| Fabrication | Stamped |
| Material | Zinc-Plated Steel |
| Hardness | Durometer 80A |
| Mount Type | Plate |
| Mounting Fasteners Included | No |
| Center-to-Center Length | 1 9/16" |
| Center-to-Center Width | 13/16" |
| Type | Ball |
| Seal Type | Open |
| Construction | Dual Raceway |
| Tread Style | Flat |
| Wheel/Tread Material | Rubber |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 871690.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
