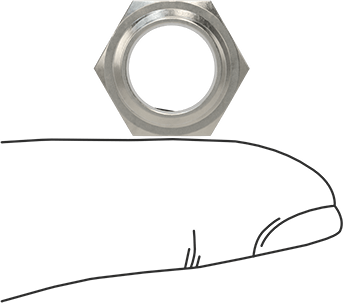

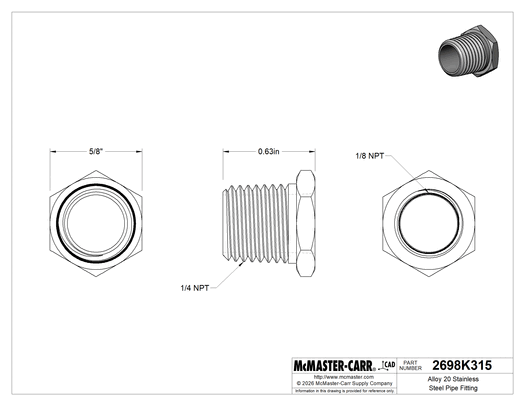

McMaster 2698K315 Alloy 20 Stainless Steel Pipe Fitting Medium-Pressure, Bushing Adapter, 1/4 Male x 1/8 Female
Choose these fittings when you want the same high-quality found in our low-pressure pipe fittings, but need more strength to handle higher pressures.
316 stainless steel fittings have excellent corrosion resistance.
Alloy 20 stainless steel fittings have the best corrosion resistance of all the stainless steel fittings we offer. Alloy 20 stainless steel is also known as Carpenter 20 and resists cracking from stress and corrosion.
|
For Use With
|
Air, Steam, Water |
|
Shape
|
Straight |
|
Type
|
Reducing Adapter, Bushing |
|
Body Shape
|
Hex |
|
Material
|
Alloy 20 Stainless Steel |
|
Pressure Class
|
Not Rated |
|
Fabrication
|
Annealed |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Connection
|
NPT Male × NPT Female |
|
Pipe Size
|
|
|
(A)
|
1/4 |
|
(B)
|
1/8 |
|
Length
|
13/16" |
|
Hex Width
|
5/8" |
|
For Pipe
|
|
|
Schedule
|
40 |
|
Material
|
Alloy 20 Stainless Steel |
|
For Flange
|
|
|
Class
|
150 |
|
Material
|
Alloy 20 Stainless Steel |
|
Specifications Met
|
ASME B16.9, ASTM B366 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Varies |
|
Schedule B
|
730729.0000 |
|
ECCN
|
2B999 |
