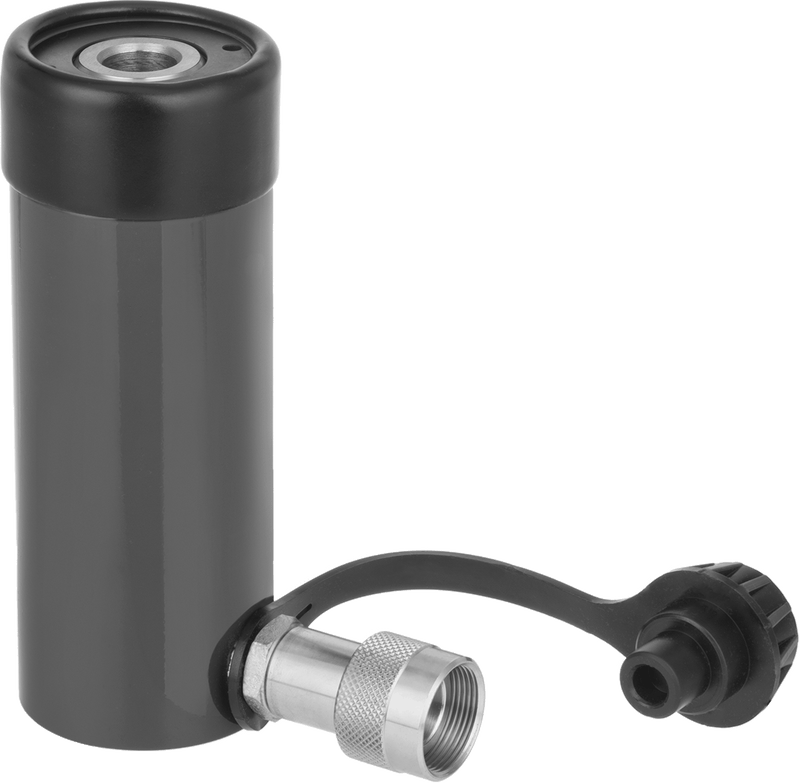

McMaster 2990T34 Hydraulic Jack Ram, Style D, 12 Tons/24,000 lbs. Capacity, 7-1/4" to 10-1/4" High
Original price
$1,935.65
-
Original price
$1,935.65
Original price
$1,935.65
$1,935.65
-
$1,935.65
Current price
$1,935.65
Push or pry apart material with these rams by attaching them to a hydraulic pump. Use hose to connect the ram to a pump; add a pressure gauge to monitor hydraulic oil pressure levels and guard against overload.
Style D — Style D rams lift or push material and have an unthreaded hole through the center that can be used to create a pulling action. Run a threaded rod through the bottom of the ram and fasten or weld the rod to the material you are trying to pull. Often used to free stuck parts.
Ram Collar Thread Size — Rams with collar threads are threaded at the top of the ram for mounting in a fixture or with a mounting plate (sold separately; see Mounting Plates for Hydraulic Jacks).
| Style | D |
| Capacity | 12 ton/24,000 lb. |
| Height | 7 1/4" to 10 1/4" |
| Maximum Lift | 3" |
| Ram Oil Capacity | 8.3 cu. in. |
| Diameter | 2 3/4" |
| Ram Collar Thread Size | 2 3/4"-16 |
| Ram Center Hole Diameter | 3/4" |
| Maximum Pressure | 10,000 psi |
| Pipe Size | 3/8 |
| Thread Type | NPTF |
| Fasteners Included | No |
| Number of Mounting Holes | 2 |
| Mounting Hole Diameter | 5/16" |
| Connects To | Hose |
| Fitting Connection | Threaded |
| Gender | Female |
| Jack Type | Hydraulic |
| Ram Material | Steel |
| Working Orientation | Horizontal, Vertical |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| Schedule B Number | 841221.0075 |
| USMCA Qualifying | No |
