McMaster 30075T116 Push-to-Lock Nylon Plastic Clamping Hanger, Pack of 5, 13/16" to 7/8" ID
Original price
$51.16
-
Original price
$51.16
Original price
$51.16
$51.16
-
$51.16
Current price
$51.16

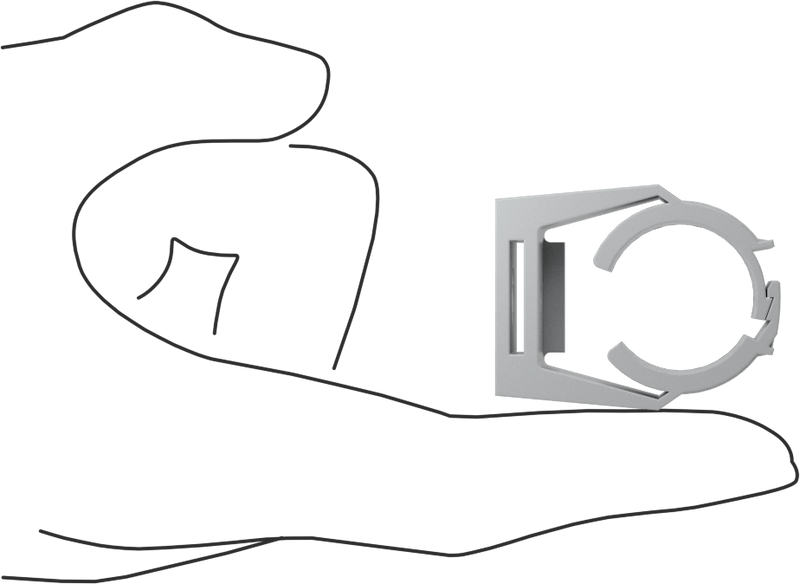

Lock pipe, tube, and conduit into place in a single step. Press material into the open hanger, then close by hand—no tools or adjustments needed. Mount with a fastener through the unthreaded hole.
Nylon — Lightweight, nonconductive, and naturally rust resistant. The plastic won't cause corrosion on metal parts. It does swell and weaken when exposed to moisture, so these are best for dry environments.
| Hanger Type | Clamp |
| Mounting Location | Threaded Rod, Strut Channel, Overhead, Wall |
| Material | Nylon |
| For Inside Diameter (Inch) | 13/16" to 7/8" |
| For Inside Diameter (Metric) | 22 mm to 23 mm |
| For Pipe Size | 1/2 |
| For Copper Tube Size | 3/4 |
| For EMT Conduit | 3/4 |
| For IMC Conduit | 1/2 |
| For Rigid Conduit | 1/2 |
| Weight Capacity | 200 lb. |
| Closure Method | Push to Close, Snap |
| Color | Gray |
| Height | 1 5/8" |
| Length | 1 1/8" |
| Width | 13/16" |
| Load Location | Top, Bottom |
| Mount Type | Through Hole |
| Mounting Fasteners Included | No |
| Performance | Adjustable |
| Specifications Met | UL 2239 |
| Temperature Range | 20° F to 180° F |
| Pack Size | 5 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 392690.9988 |
| USMCA Qualifying | Yes |
