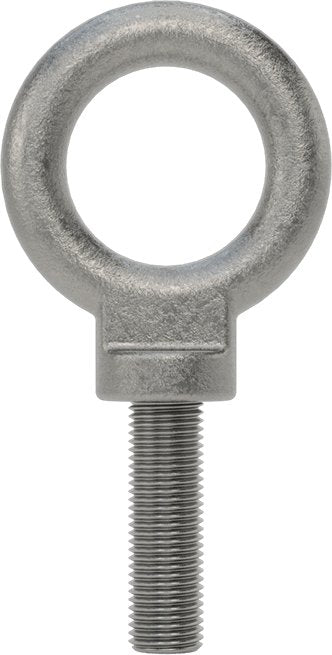

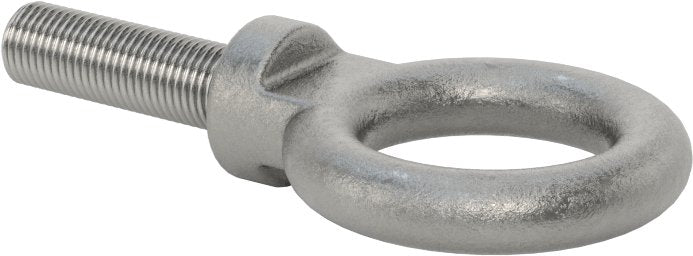

McMaster 3014T258 Eye Bolt With Shoulder 3/8"-24 Thread Size, 1-1/4" Thread Length
Original price
$46.24
-
Original price
$46.24
Original price
$46.24
$46.24
-
$46.24
Current price
$46.24
Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings.
Warning: Never use to lift people or items over people.
|
Application
|
For Lifting |
|
Thread
|
|
|
Size
|
3/8"-24 |
|
Length
|
1 1/4" |
|
Shank Length
|
1 1/4" |
|
Eye Diameter
|
1" |
|
Vertical Capacity
|
1,400 lbs. |
|
Eye Style
|
Closed |
|
Eye Shape
|
Round |
|
Material
|
Steel |
|
Threading
|
Fully Threaded |
|
Movement
|
Rigid |
|
Overall Length
|
3 1/4" |
|
Body Style
|
With Shoulder |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
731815.2000 |
|
ECCN
|
EAR99 |
