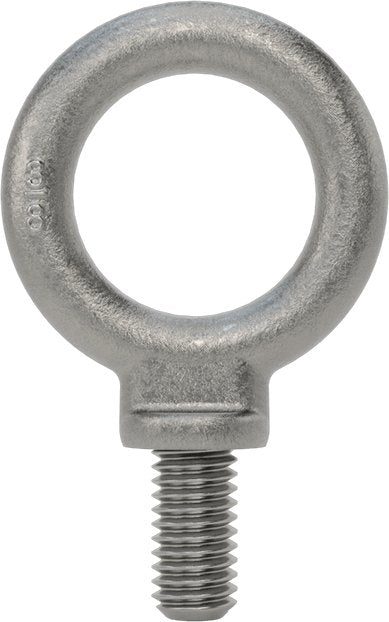

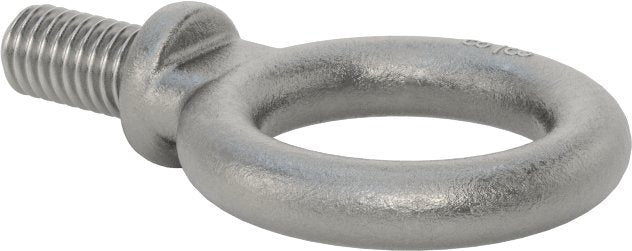

McMaster 3014T954 Machinery Eye Bolt With Shoulder 3/8"-16 Thread Size, 3/4" Thread Length
Original price
$5.81
-
Original price
$5.81
Original price
$5.81
$5.81
-
$5.81
Current price
$5.81
Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings.
Warning: Never use to lift people or items over people.
|
Application
|
For Lifting |
|
Thread
|
|
|
Size
|
3/8"-16 |
|
Length
|
3/4" |
|
Shank Length
|
3/4" |
|
Eye Diameter
|
1 1/32" |
|
Vertical Capacity
|
1,300 lbs. |
|
Eye Style
|
Closed |
|
Eye Shape
|
Round |
|
Material
|
Steel |
|
Threading
|
Fully Threaded |
|
Movement
|
Rigid |
|
Specifications Met
|
ASTM A489 |
|
Overall Length
|
2 3/4" |
|
Body Style
|
With Shoulder |
|
RoHS
|
Not Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
731815.2000 |
|
ECCN
|
EAR99 |
