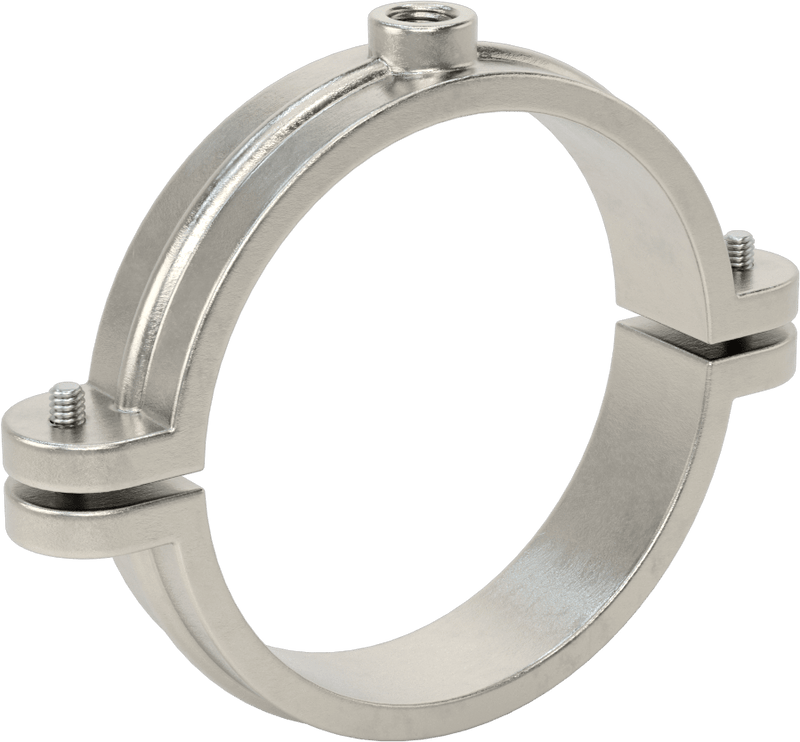

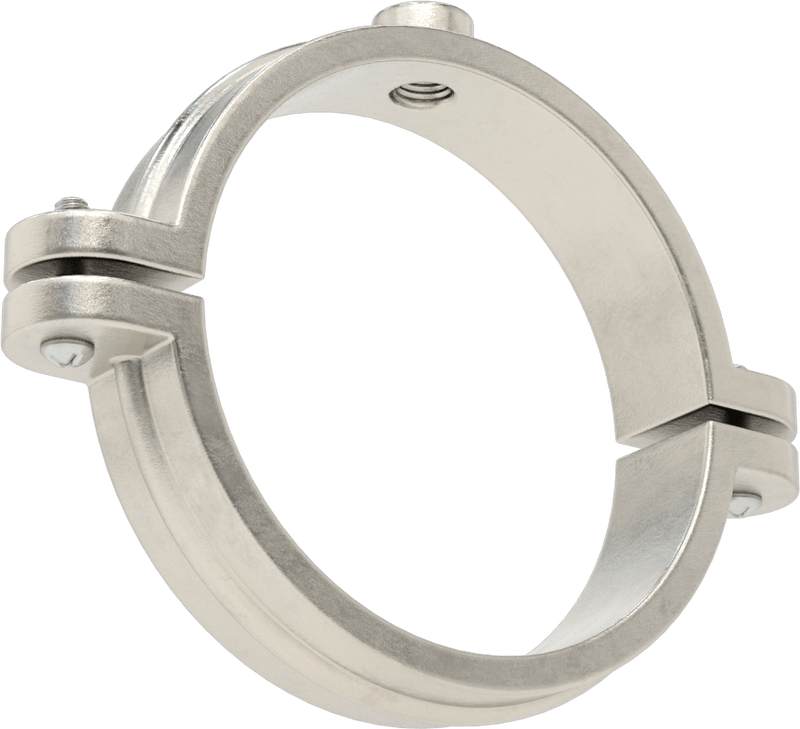

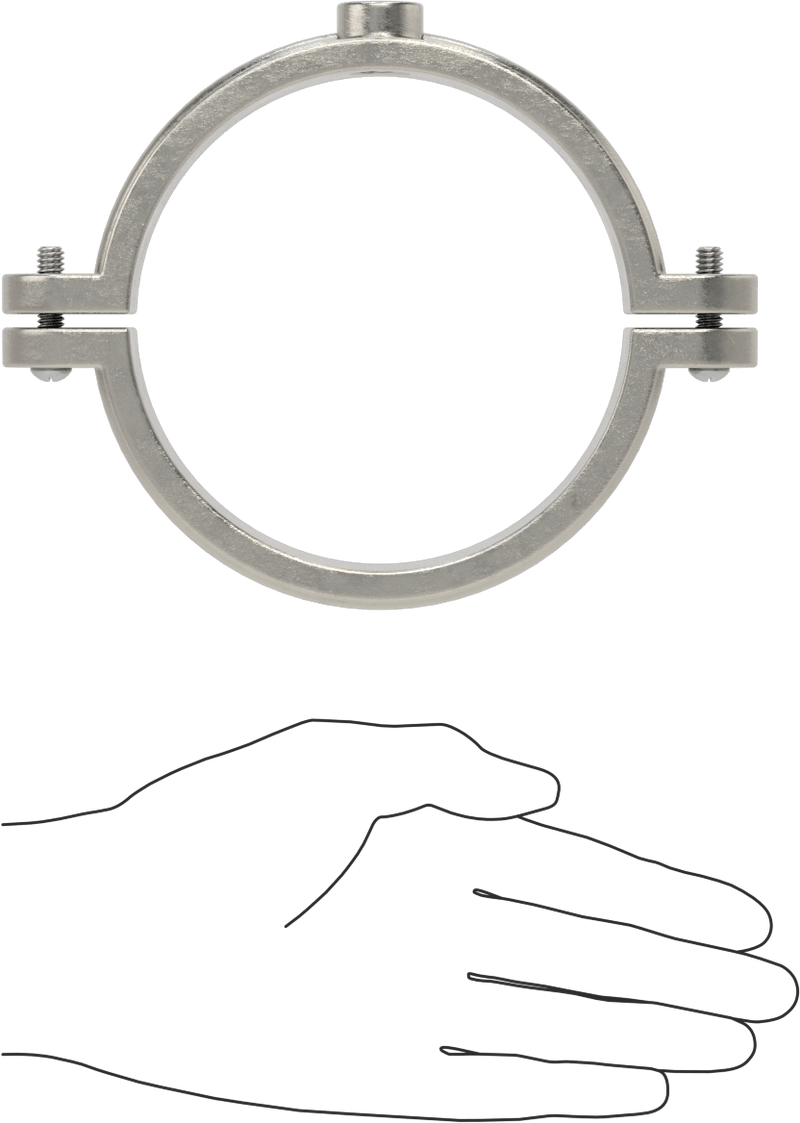

McMaster 3023T91 Snug-Hold Threaded-Rod-Mount Clamping Hanger, 304 Stainless Steel, 4-1/2" ID
Original price
$370.49
-
Original price
$370.49
Original price
$370.49
$370.49
-
$370.49
Current price
$370.49
Place pipe between the hanger halves and adjust the side bolts for a tighter fit than other pipe hangers. When closed, the split ring forms a complete circle around the pipe for 360° support with no gaps. Mount by twisting a threaded rod through the threaded hole.
| Hanger Type | Clamp |
| Material | 304 Stainless Steel |
| For Inside Diameter (Inch) | 4 1/2" |
| For Inside Diameter (Metric) | 114 mm |
| For Pipe Size | 4 |
| For EMT Conduit | 4 |
| For IMC Conduit | 4 |
| For Rigid Conduit | 4 |
| For Thread Size | 1/2"-13 |
| Weight Capacity | 300 lb. |
| Mounting Hole Diameter | 1/2" |
| Closure Method | Bolt |
| Construction | Two Piece |
| Height | 5 1/2" |
| Length | 6 11/16" |
| Width | 1 3/16" |
| Load Location | Top, Bottom |
| Military Specification | Fed. Spec. WW-H-171 Type 25 |
| Mount Type | Through Hole |
| Mounting Location | Threaded Rod, Overhead |
| Performance | Snug Fit, Corrosion Resistant |
| Specifications Met | ANSI/MSS SP-58 Type 12 |
| Threaded Rod Included | No |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 732690.8630 |
| USMCA Qualifying | No |
