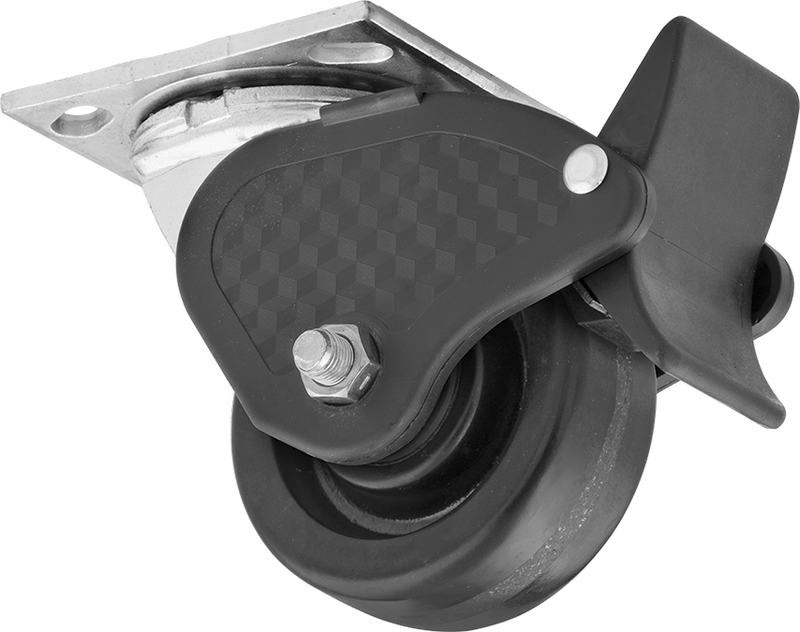

McMaster 30305T542 Samson Caster with 4-1/2" x 4" Mounting Plate, Swivel with Total Lock and 4" Diameter Phenolic Wheel
UPC: | Harmonization / Schedule B : 8716.90.0000
Country of Origin: United States | Shipping Weight: 1.9 lbs
Original price
$154.47
-
Original price
$154.47
Original price
$154.47
$154.47
-
$154.47
Current price
$154.47
These are good general purpose casters for moderately heavy loads. They have nonmarking phenolic wheels that roll best on smooth surfaces.
The wheels have roller bearings for smooth rolling.
Swivel Casters — Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake and Swivel Lock (Total Lock)—Casters with total lock brake the wheel and lock the swivel with one press of the foot pedal.
| Nonmarking Wheels | Yes |
| Wheel Color | Black |
| Wheel Type | Solid |
| Hardness Rating | Hard |
| Caster Type | Swivel |
| Brake/Lock Type | Wheel Brake and Swivel Lock (Total Lock) |
| Diameter | 4" |
| Width | 1 1/2" |
| Number of | 1 |
| Mount Height | 5 5/8" |
| Weight Capacity per Caster | 600 lb. |
| Hardness | Durometer 90D |
| Type | Roller |
| Material | Steel |
| Seal Type | Open |
| For Screw Size | 3/8" |
| Location | Face |
| Activation | Foot Pedal |
| Caster Swivel Construction | Kingpin |
| For Surface Type | Carpet, Concrete, Steel |
| For Use With | Mild Acids, Solvents, Grease, Oil |
| Fabrication | Stamped |
| Material | Zinc-Plated Steel |
| Mount Type | Plate |
| Mounting Fasteners Included | No |
| Center-to-Center Length (A) | 3 5/8" |
| Center-to-Center Length (B) | 3" |
| Center-to-Center Width (A) | 3" |
| Center-to-Center Width (B) | 2 5/8" |
| Length | 4 1/2" |
| Width | 4" |
| Type | Ball |
| Seal Type | Open |
| Construction | Dual Raceway |
| Swivel-Lock Activation | Foot Pedal |
| Tread Style | Flat |
| Wheel/Tread Material | Phenolic |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 871690.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
