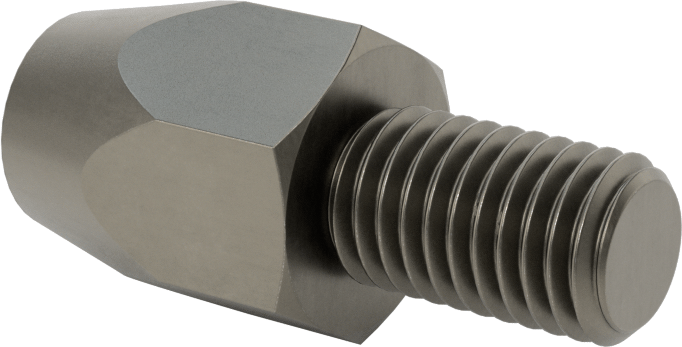

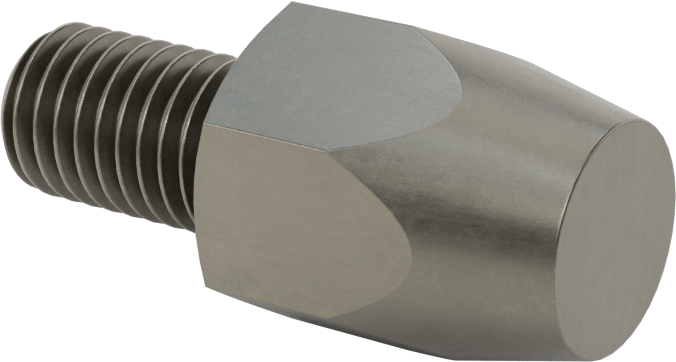

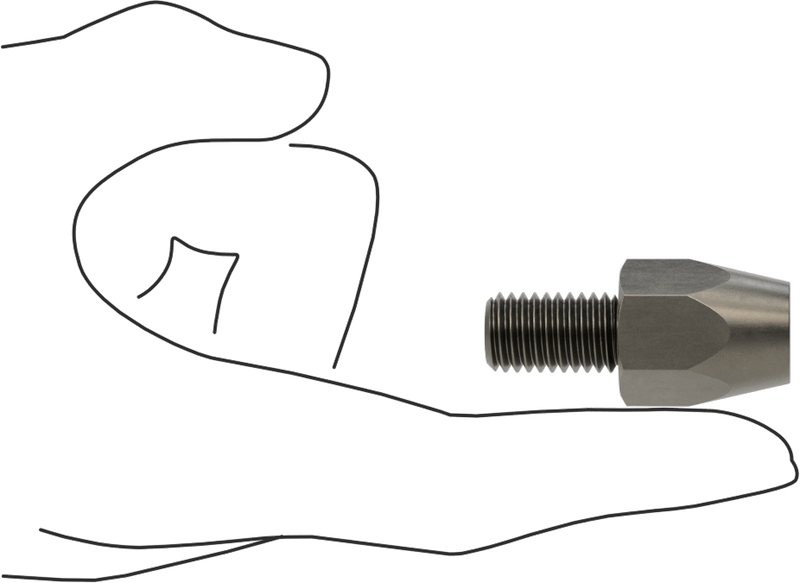

McMaster 3078N14 Threaded Locating and Support Button, Hex, M12 × 1.75 mm, 25 mm Long, Steel
Original price
$53.27
-
Original price
$53.27
Original price
$53.27
$53.27
-
$53.27
Current price
$53.27
Use these buttons to support and position workpieces and fixtures from the bottom or side. Threading makes these buttons easier to replace than press-fit, so they are a good choice for high-wear applications. They’re also known as rest buttons.
Hex — Their hex shape lets you screw them into a threaded hole with a wrench or socket.
| Material | Steel |
| Fastener Head Type | Flat |
| Length | 25 mm |
| Length Tolerance | -0.2 mm to 0.2 mm |
| Width | 19 mm |
| Thread Size | M12 × 1.75 mm |
| Thread Length | 20 mm |
| Shape | Hex |
| Specifications Met | DIN 6320 |
| Mount Type | Threaded Stud |
| System of Measurement | Metric |
| Country of Origin | Germany |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions | 6(a) |
| Schedule B Number | 8466.20.8065 |
| USMCA Qualifying | No |
