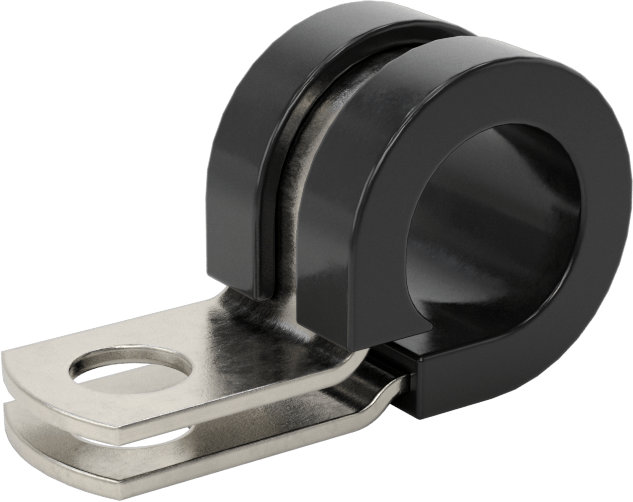

McMaster 3177T51 Snug-Fit Vibration-Damping Loop Clamp, 321 Stainless Steel with Neoprene Cushion, 3/8" ID, Pack of 5
Original price
$47.18
-
Original price
$47.18
Original price
$47.18
$47.18
-
$47.18
Current price
$47.18
A molded cushion reduces vibration and wear from clamp edges, plus provides a tighter fit around material than standard vibration-damping loop clamps. Clamps surround lines completely while holding them close to the mounting surface.
321 Stainless Steel — 321 stainless steel clamps have excellent corrosion resistance.
Neoprene Cushion — Neoprene cushions are for use in environments where clamps are exposed to oil and ozone.
| Material | 321 Stainless Steel |
| Cushion Material | Neoprene |
| ID | 3/8", 10 mm |
| Cushion Color | Black |
| Center-to-Center Length | 9/16" |
| Length | 1 1/8" |
| Width | 3/8" |
| Height | 5/8" |
| Thickness | 1/32" |
| Pack Size | 5 |
| Fasteners Included | No |
| Hole Diameter | 13/64" |
| Temperature Range | -40° F to 210° F |
| For Use Outdoors | Yes |
| Military Specification | MS21919 |
| For Copper Tube Size | 1/4 |
| For Number of Lines | 1 |
| Mount Type | Screw On |
| Number of Mounting Points | 1 |
| Performance | Chemical Resistant, Corrosion Resistant, Snug Fit, Vibration Damping |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7326.90.8695 |
| USMCA Qualifying | Yes |
