McMaster 3249A221 Carbide-Insert Boring Lathe Tool 1/2" Shank Diameter, 4 Piece Set
Original price
$291.40
-
Original price
$291.40
Original price
$291.40
$291.40
-
$291.40
Current price
$291.40
These tools come with an insert installed. When one edge of the insert dulls, rotate it to use a sharp edge. When all edges dull, replace the insert rather than the whole tool. Inserts are C5 carbide for general purpose machining.
|
Cut Type
|
Boring |
|
Cut Direction
|
Right Hand |
|
Shank Type
|
Round |
|
Shank Diameter
|
1/2" |
|
Number of Pieces
|
4 |
|
Includes
|

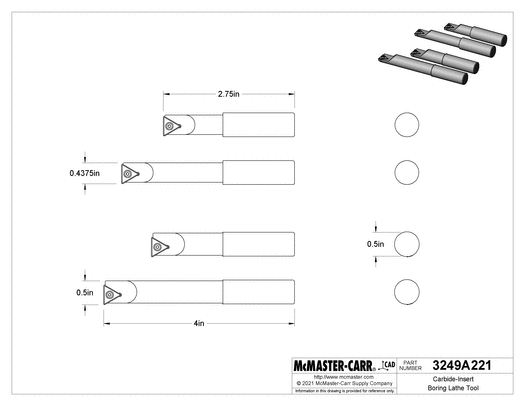

One 2 3/4" lg. boring tool for 7/16" min. hole dia. and 1 1/4" max. hole dp. |
|
Material
|
Steel |
|
For Use On
|
Steel |
|
Insert
|
|
|
Code
|
TPMT-221 |
|
Shape
|
Triangle |
|
Inscribed Circle Diameter (IC)
|
1/4" |
|
Thickness
|
1/8" |
|
Tip Radius
|
1/64" |
|
Nose Angle
|
60° |
|
Relief Angle
|
11° |
|
Material
|
C5 Carbide |
|
Holding Method
|
Hex Screw |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
820760.0060 |
|
ECCN
|
EAR99 |
