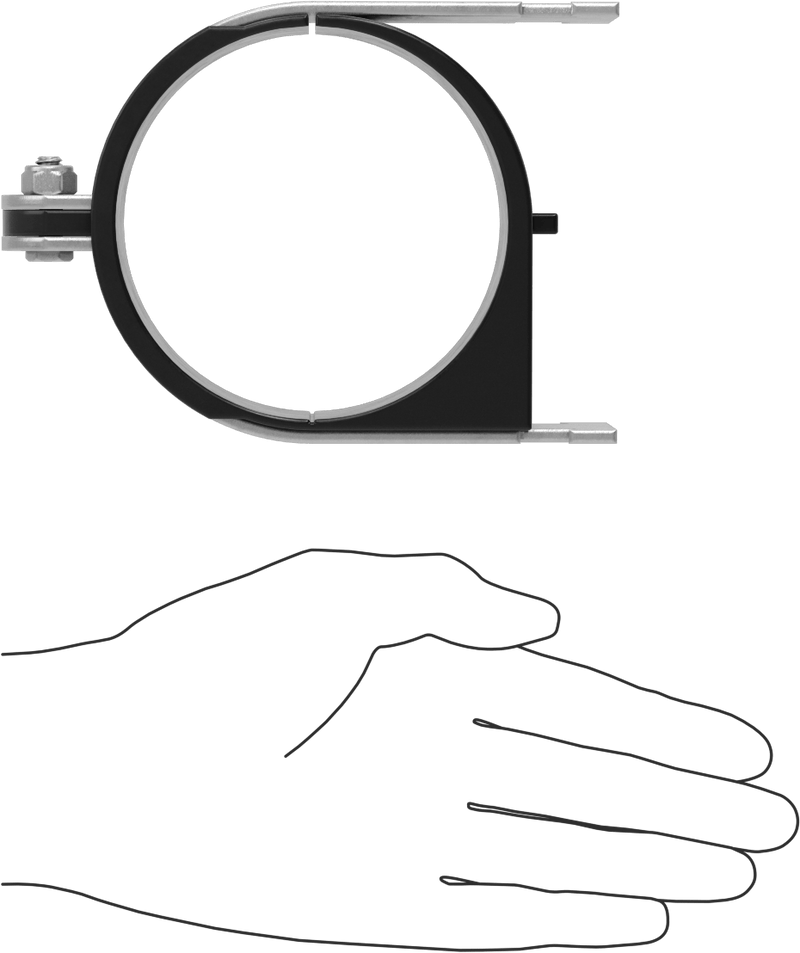

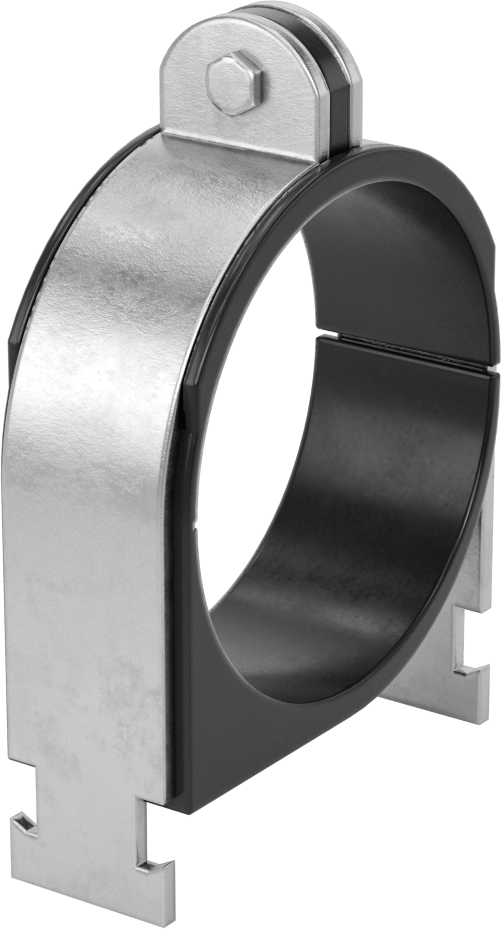

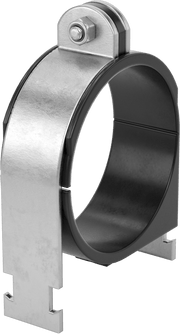

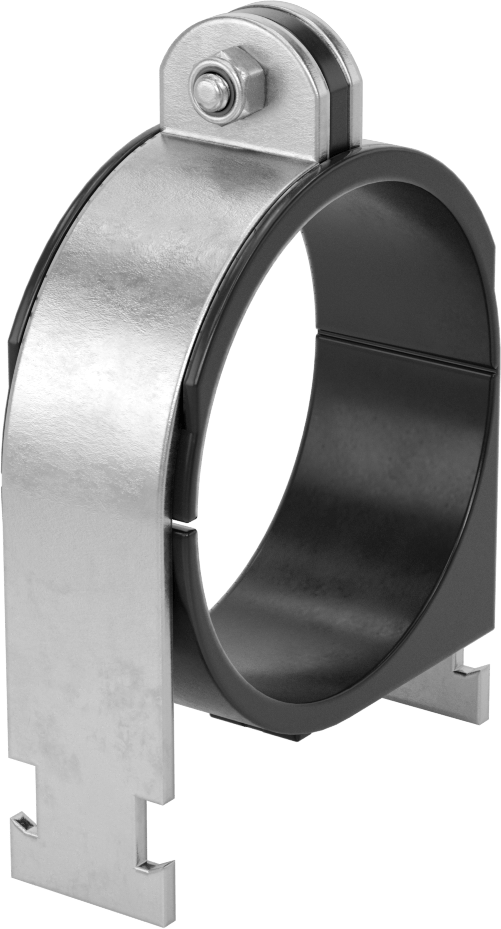

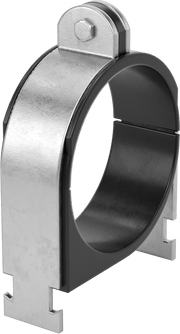

McMaster 32625T36 Strut-Mount Vibration-Damping Routing Clamp with TPE Rubber Cushion, Zinc-Plated Steel, 3-1/2" ID, for 3 Pipe Size, 3600 lb
Original price
$79.95
-
Original price
$79.95
Original price
$79.95
$79.95
-
$79.95
Current price
$79.95
Absorb shock and muffle noise from rattling pipes. The cushion inside these clamps reduces vibration to extend the life of your pipe, tubing, and conduit. Slide clamps into your strut channel and tighten the nut to secure. Since you don’t have to drill into beams and walls, it's easy to reconfigure setups as needed.
Zinc-Plated Steel — The zinc plating protects these clamps from occasional exposure to moisture.
Flammability Rating — UL 2043 certified to generate minimal smoke in the event of a fire. These are a good choice for spaces that could spread smoke through your HVAC system, such as air intakes and ducts.
| Clamp Type | Strap |
| Framing Type | Strut Channel |
| Strut Channel Framing Component | Routing Clamp |
| Material | Zinc-Plated Steel |
| Cushion Material | TPE |
| For Pipe Size (Inch) | 3 1/2" |
| For Pipe Size (Metric) | 89 mm |
| For Pipe Size | 3 |
| For Channel Width | 1 5/8" |
| Length | 3 15/16" |
| Width | 1 1/4" |
| Height | 5 9/16" |
| Center Height | 2" |
| Thickness | 1/8" |
| Weight Capacity | 3,600 lb. |
| Temperature | -50° F to 275° F |
| Flammability Rating | UL 2043 |
| Features | Thumb Grip |
| Cushion Color | Black |
| Fasteners Included | Yes |
| For EMT Conduit Trade Size | 3 |
| For IMC Conduit Trade Size | 3 |
| For Rigid Conduit Trade Size | 3 |
| For Strut Channel Type | Standard, Stacked, Low Profile, High Profile |
| Mount Type | Slide In |
| Nut Material | Zinc-Plated Steel |
| Performance | Low Smoke, Vibration Damping |
| Screw Material | Zinc-Plated Steel |
| System of Measurement | Inch, Metric |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7326.90.8630 |
| USMCA Qualifying | Yes |
