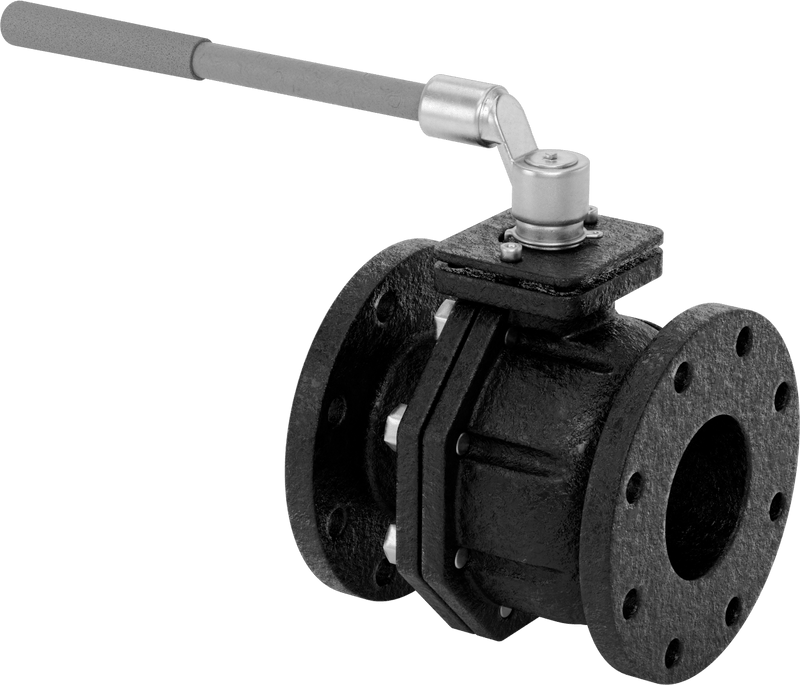

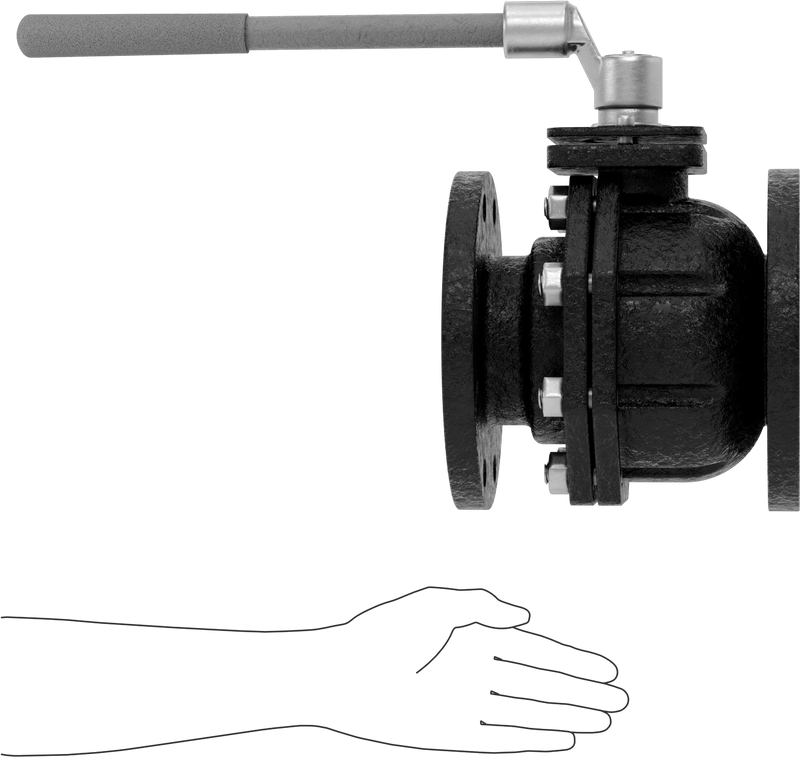

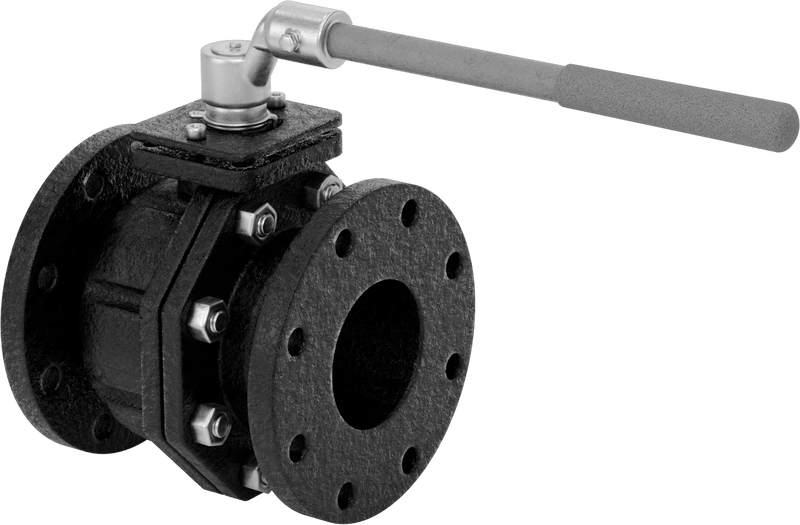

McMaster 3634K58 Flanged On/Off Ball Valve, Cast Iron Body, 4 Pipe Size, Lockable Lever Handle, 200 psi
Original price
$1,744.15
-
Original price
$1,744.15
Original price
$1,744.15
$1,744.15
-
$1,744.15
Current price
$1,744.15
Bolt these valves to ANSI flanges. Their lockable lever handle can be fixed in place using a padlock (not included). All have four mounting holes to install an actuator, so you can convert them from manual to automatic valves.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Warning: Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
| Valve Function | On/Off |
| Valve Type | Ball |
| Activation | Manual |
| Valve Operation | Handle |
| Handle Style | Lever |
| Handle Type | Lockable |
| Connection Type | Pipe |
| Connection Style | Flanged |
| Pipe Size | 4 |
| Pressure Class | 125 |
| Flange OD | 9" |
| Bolt Circle Diameter | 7 1/2" |
| Number of Mounting Holes | 8 |
| Mounting Hole Size | 0.75" |
| Flow Coefficient (Cv) | 2,500 |
| Maximum Pressure | 200 psi @ 150° F |
| Maximum Steam Pressure | 125 psi @ 215° F |
| Temperature Range | -20° to 350° F |
| Vacuum Rating | 29 in. of Hg |
| Body Material | Cast Iron |
| Ball Material | Cast Iron |
| Seal Material | PTFE Plastic |
| Seat Material | PTFE Plastic |
| Packing Material | PTFE Plastic |
| Port Type | Full |
| Shape | Straight |
| End-to-End Length | 9" |
| For Maximum Shackle Diameter | 1/4" |
| Height | 13 1/2" |
| Length | 21" |
| Actuator Mounting Hole Thread Size | M10 × 1.5 mm |
| For Use With | Water, Oil, Air, Steam |
| Specifications Met | ANSI/ASME B16.10, ANSI/ASME B16.5, MSS-SP-72 |
| RoHS Compliance | Not Compliant |
| REACH Compliance | Not Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | India or United States |
| USMCA Qualifying | No |
| Schedule B Number | 8481.80.3025 |
| ECCN | EAR99 |
