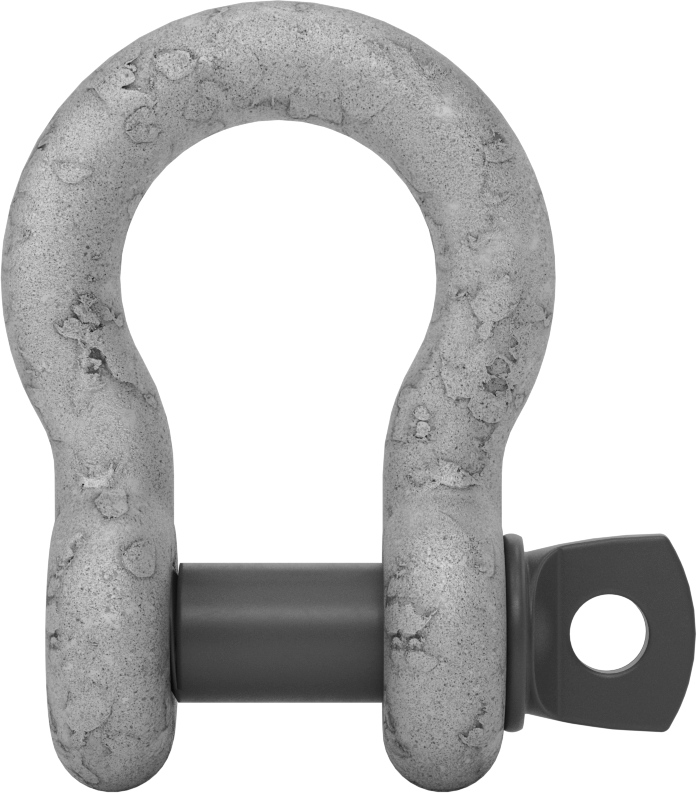

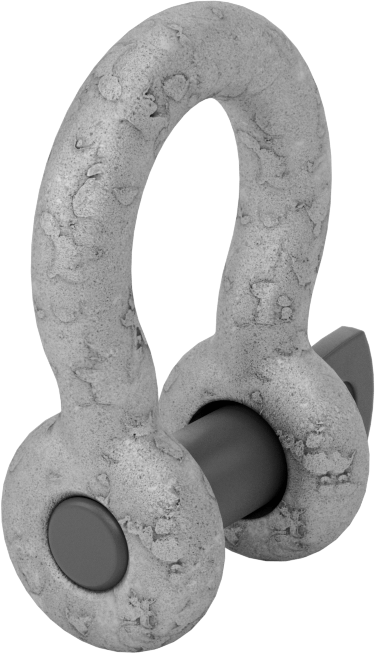

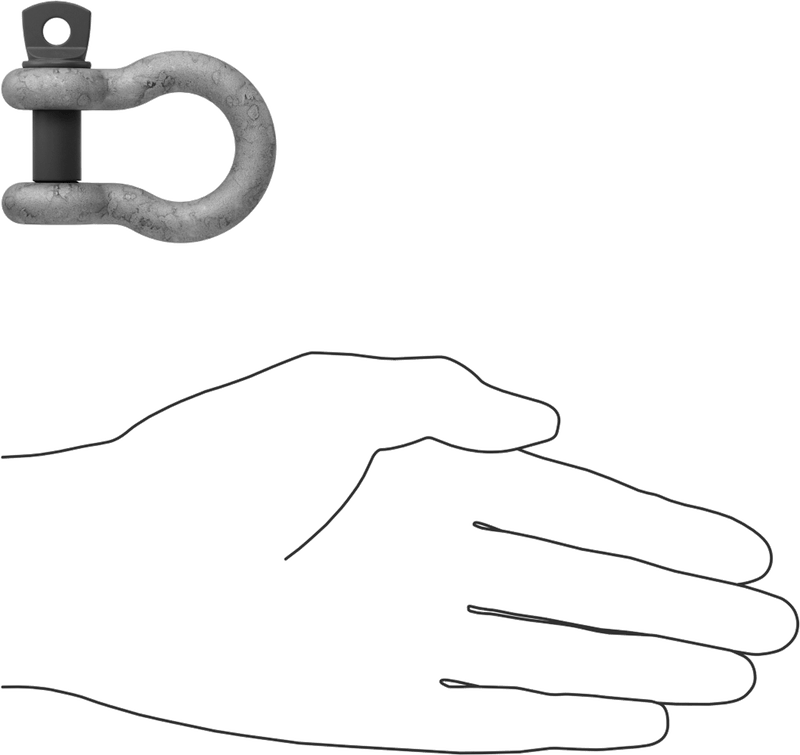

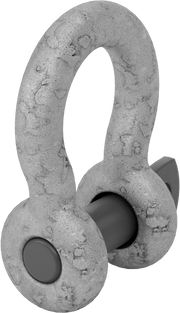

McMaster 3663T51 Galvanized Alloy Steel Anchor Shackle, Screw Pin, for Lifting, 3/8" Thick, 4,000 lb Capacity

Original price $61.38 - Original price $61.38
Original price
$61.38
$61.38 - $61.38
Current price $61.38

Your go-to choice for connecting hooks, slings, and other rigging and lifting equipment. The rounded body on these shackles supports vertical or side loads without fatiguing or warping the shape. They meet ASME specifications for rigging and lifting, so they can hoist everything from steel beams to bulldozers. Look for the manufacturer's stamp to confirm the size and weight capacity. Also known as bow shackles.

Note: Capacities listed are for vertical lifting only. As the lift angle changes from vertical, the amount of weight the shackle can lift is significantly reduced.

Screw Pin β€” The most common shackle pin type. Although the pin easily connects and disconnects, it can come unscrewed or wear down over time, so it's best for temporary use.

High-Strength Galvanized Alloy Steel β€” Stronger than galvanized steel with corrosion resistance in wet and outdoor environments.

Shackle Type Anchor
Pin Type Screw
Material Galvanized Alloy Steel
Thickness 3/8"
Opening Width 11/16"
Pin Diameter 15/32"
Inside Length 1 13/32"
Inside Width 1"
Weight Capacity 4,000 lb.
Specifications Met ASME B30.26
Application For Lifting
Applied Load Direction Side, Vertical
Attachment Type Clevis
Fabrication Forged
Fitting Type Shackle
For Use With Chain
Performance Corrosion Resistant, High Strength
Safety Factor 5:1
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7326.90.8695
USMCA Qualifying No
