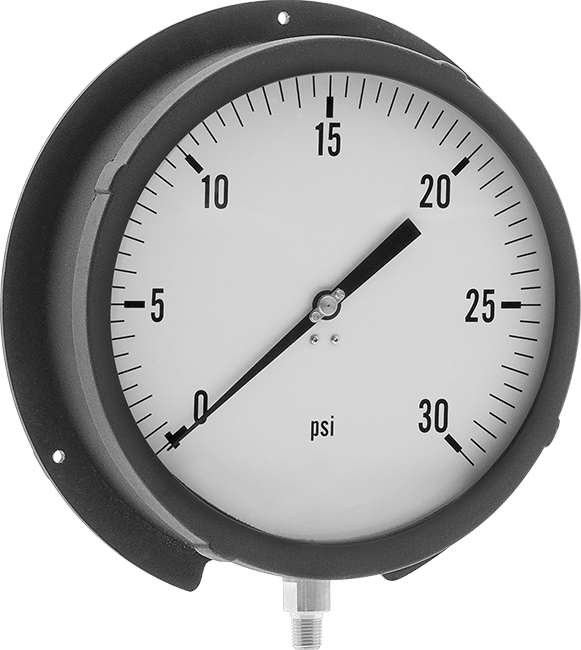

McMaster 3705K38 Large-Dial Pressure Gauge with Aluminum Case High-Accuracy, 8-1/2" Dial, 1/4 NPT Male Bottom Connection 0 to 30 psi pressure range
Read your pressure from a distance with these large-dial gauges. Use them with pumps, filters, regulators, and in process lines to measure and display pressure. They are suitable for critical processes that require high accuracy, such as hydraulic and laboratory applications. Mount gauges with the dial face upright.
Gauges with aluminum case have better corrosion resistance than gauges with steel case.
|
Measures
|
Pressure |
|
For Use With
|
Air, Hydraulic Fluid, Water |
|
Display Type
|
Dial |
|
Dial Type
|
Dry |
|
Dial Diameter
|
8 1/2" |
|
Pipe Size
|
1/4 |
|
Scale Type
|
Single |
|
Scale
|
psi |
|
Environment Temperature Range
|
-40° to 150° F |
|
Process Temperature Range
|
-40° to 150° F |
|
Connection Type
|
Pipe |
|
Pipe Connection Type
|
Threaded |
|
Thread Type
|
NPT |
|
Gender
|
Male |
|
Case Material
|
Painted Aluminum |
|
Case Color
|
Black |
|
Connection Material
|
Brass |
|
Lens Material
|
Glass |
|
Accuracy
|
±1% |
|
Accuracy Scale
|
Full Scale |
|
Accuracy Grade
|
1A |
|
Mounting
|
|
|
Orientation
|
Upright |
|
Fasteners Included
|
No |
|

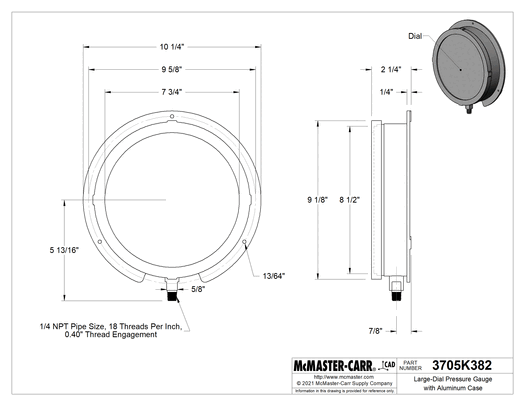

Bolt
|
|
|
Circle Diameter
|
9 5/8" |
|
Hole Diameter
|
13/64" |
|
Number of Holes
|
3 |
|
Connection Location
|
Bottom |
|
Flange
|
|
|
Location
|
Back |
|
OD
|
10 1/4" |
|
Mount Type
|
Flange |
|
Graduation Marks
|
0.5 psi |
|
Numeric Increments
|
5 psi |
|
Pressure Range
|
0 to 30 psi |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
902620.0000 |
|
ECCN
|
EAR99 |
