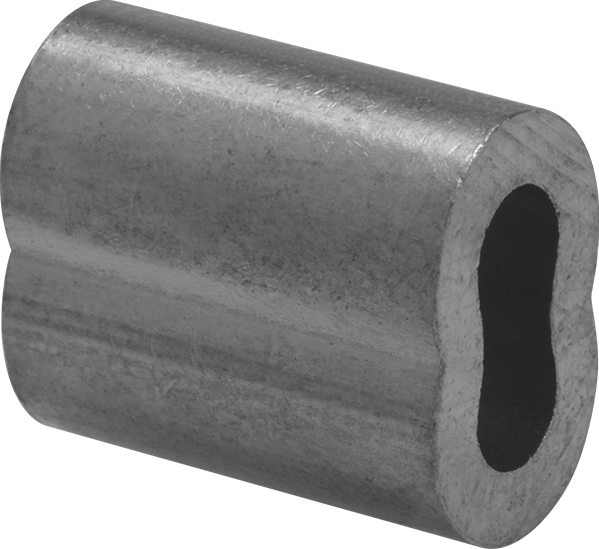

McMaster 3883T47 Wire Rope Compression Sleeve (For Lifting), Tin-Plated Copper, for 1/4" Stainless Steel/Steel Rope, Pack of 5, MS51844
Original price
$69.35
-
Original price
$69.35
Original price
$69.35
$69.35
-
$69.35
Current price
$69.35

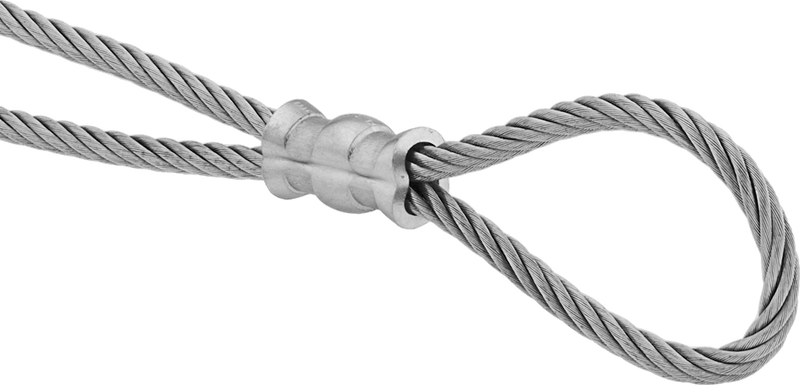

Install with a compression tool to create a strong, permanent loop. Compression sleeves are also known as ferrules, crimps, swaging, and splicing sleeves. They’re compatible with Nicopress compression tools.
Warning: Fittings must match rope diameter and be installed correctly to obtain maximum holding power. Test all assemblies for required strength before use. Do not use with coated rope unless the coating is removed.
Tin-Plated Copper — Tin-plated copper sleeves have mild corrosion resistance.
| Material | Tin-Plated Copper |
| For Wire Rope Material | Steel, Stainless Steel |
| For Rope Diameter | 1/4" |
| For Wire Rope Construction | 7 × 7 Strand Core, 7 × 19 IWRC, 7 × 19 Strand Core, 6 × 19 IWRC |
| Sleeve Length | 1" |
| Pack Size | 5 |
| Required Number of Compressions | 3 |
| Rope Capacity Adjustment Factor | 100% |
| Specifications Met | ASME B30.9 |
| Military Specification | MS51844 |
| Application | For Lifting |
| Attachment Type | Loop |
| Fitting Type | Compression Sleeve |
| Required Installation Tool | Compression Tools |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7419.80.5500 |
| USMCA Qualifying | No |
