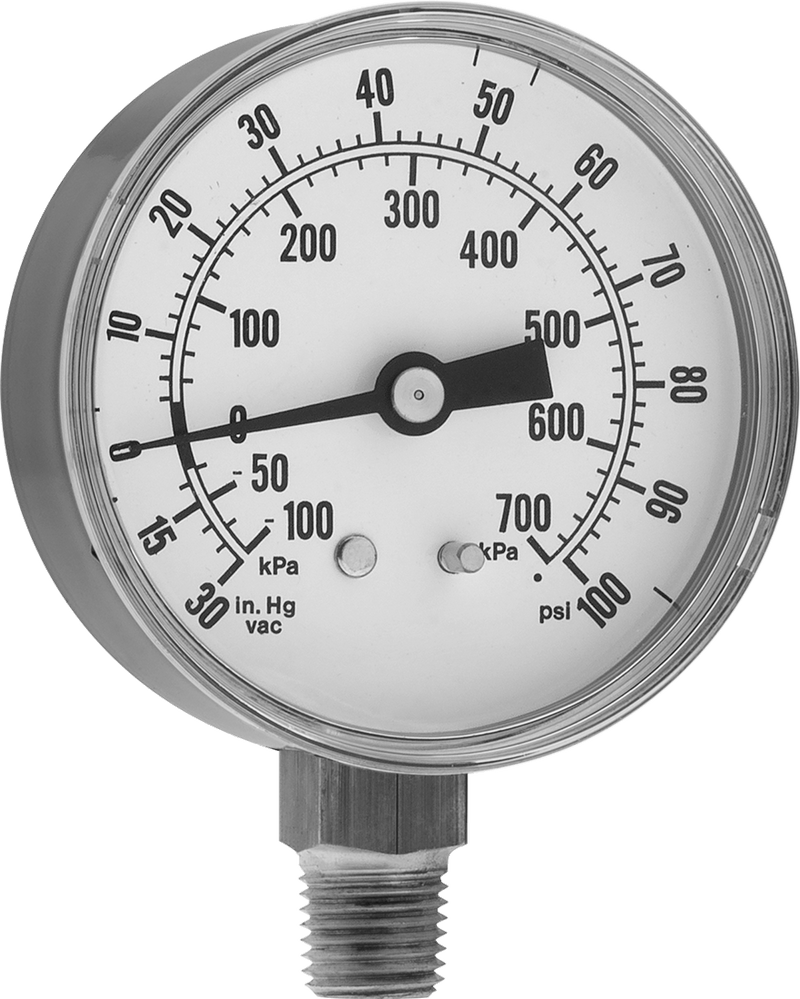

McMaster 4004K63 Dual-Scale Pressure and Vacuum Gauge with Steel Case, 2-1/2" Dial Diameter, 1/4 NPT Bottom Connection, 0–100 psi
Original price
$64.44
-
Original price
$64.44
Original price
$64.44
$64.44
-
$64.44
Current price
$64.44
Also known as compound gauges, these measure both pressure and vacuum. Use them with pumps, filters, regulators, compressors, and in suction and process lines.
Gauges with steel case are more impact resistant than gauges with ABS plastic case.
| Measures | Pressure, Vacuum |
| For Use With | Air |
| Display Type | Dial |
| Dial Type | Dry |
| Dial Diameter | 2 1/2" |
| Pipe Size | 1/4 |
| Scale Type | Dual |
| Scale | psi, kPa, in. of Hg |
| Environment Temperature Range | -40° to 150° F |
| Process Temperature Range | -40° to 150° F |
| Connection Type | Pipe |
| Pipe Connection Type | Threaded |
| Thread Type | NPT |
| Gender | Male |
| Case Material | Steel |
| Connection Material | Brass |
| Lens Material | Polycarbonate Plastic |
| Accuracy | ±2% |
| Accuracy Scale | Mid Scale |
| Accuracy Grade | B |
| Connection Location | Bottom |
| Vacuum Range | |
| in. of Hg | 30" to 0 |
| kPa | 0 to -100 |
| Graduation Marks | |
| psi | 2 |
| in. of Hg | 5 |
| kPa | 20 |
| Numeric Increments | |
| psi | 10 |
| in. of Hg | 15 |
| kPa | 100 |
| Pressure Range | 0 to 700 kPa |
| Pressure Range | 0 to 100 psi |
| RoHS | Not Compliant |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Brazil |
| Schedule B | 9026.20.0000 |
| ECCN | EAR99 |
