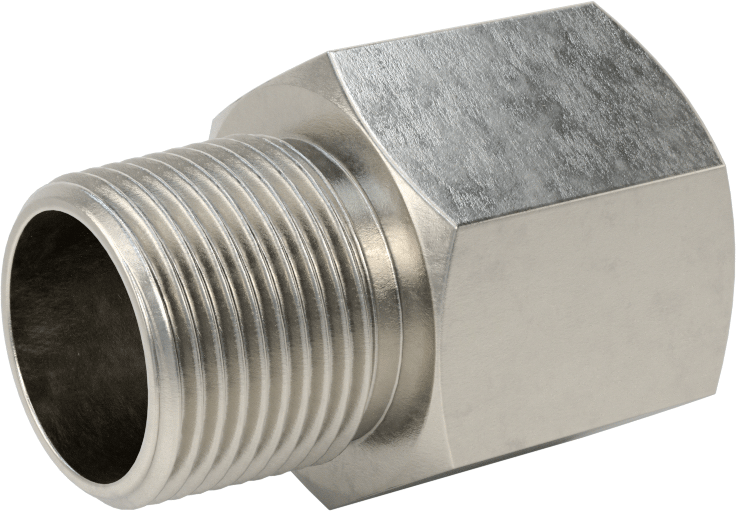

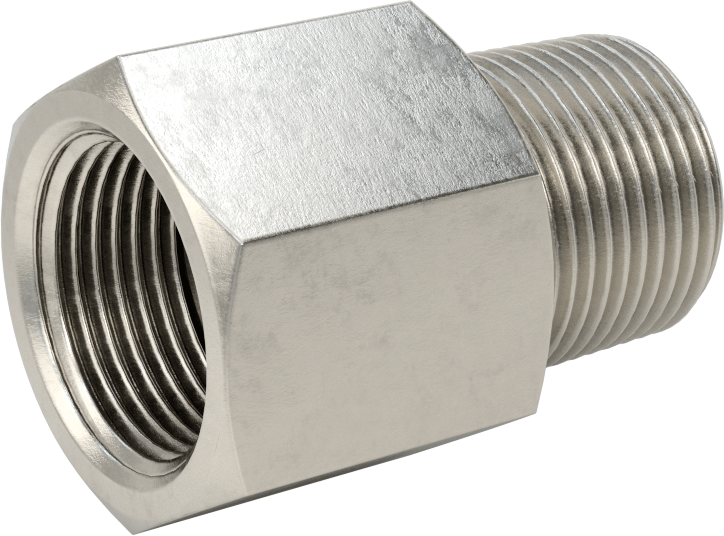

McMaster 4092K54 Precision Extreme-Pressure 316 Stainless Steel Fitting, Straight Adapter, 3/4 BSPP Female × 3/4 NPT Male
Original price
$175.98
-
Original price
$175.98
Original price
$175.98
$175.98
-
$175.98
Current price
$175.98
Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines. They are 316 stainless steel for excellent corrosion resistance.
| For Use With | Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water |
| Shape | Straight |
| Type | Adapter |
| Body Shape | Hex |
| Material | 316 Stainless Steel |
| Fabrication | Machined |
| Thread Fabrication | Rolled |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | BSPP Female × NPT Male |
| Pipe Size | 3/4 |
| Dash Size | 12 |
| Length | 2" |
| Hex Width | 1 5/16" |
| Maximum Pressure | 4,300 psi @ 72° F |
| Maximum Steam Pressure | 4,300 psi @ 300° F |
| Specifications Met | ASME B1.20.1, ASME B31.1, ASME B31.3, ISO 228.1, ISO 228.2, ISO BS 2779 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B | 7307.29.0000 |
| ECCN | 2B999 |
