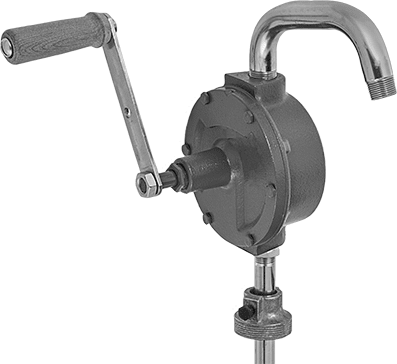

McMaster 4236K7 Continuous-Flow Drum Pump for Oil with Removable Spout, 11 oz./Stroke
Rotate the handle to dispense a continuous flow of liquid.
Removable Spout—Removable spouts can be replaced with discharge tube for transfer applications.
|
Style
|
A |
|
Flow Rate
|
11 fl oz/stroke |
|
For Container Size
|
55 gal. |
|
Maximum Viscosity
|
420 cP |
|
Temperature
|
|
|
Minimum
|
Not Rated |
|
Maximum
|
300° F |
|
For Drum Opening Size
|
2 NPT |
|
Includes
|
Drum Connector |
|
Intake
|
|
|
Tube Adjustability
|
Fixed |
|
Tube OD
|
1/2" |
|
Tube Length
|
40" |
|
Tube Material
|
Galvanized Steel |
|
Discharge Location
|
Spout End |
|
Discharge (Spout End)
|
|
|
Connection Port
|
Pipe |
|
Connection
|
Threaded |
|
Pipe Size
|
3/4 |
|
Thread Type
|
NPT |
|
Gender
|
Male |
|
Drum Pump Type
|
Crank Handle |
|
Spout Type
|
Removable |
|
Chemical Resistance
|
|
|
Excellent
|
Ethylene Glycol, Hydraulic Oil, Motor Oil |
|
Poor
|
Acetone, Ammonium Hydroxide, Deionized Water, Diesel Fuel, Ethanol, Gasoline, Hydrochloric Acid (20% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Isopropyl Alcohol, Kerosene, Lacquer Thinner, Methanol (Methyl Alcohol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Mineral Spirits, Nitric Acid (20% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Paint, Phosphoric Acid (<40% Concentration), Phosphoric Acid (Greater Than or Equal to 40% Concentration), Salt Water, Sodium Hydroxide (Caustic Soda) (20% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (80% Concentration), Sulfuric Acid (10-75% Concentration), Sulfuric Acid (75-100% Concentration), Sulfuric Acid (<10% Concentration), Water, Xylene |
|
Warning
|
Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
|
Discharge (Pump Body)
|
|
|
Connection Port
|
Pipe |
|
Connection
|
Threaded |
|
Pipe Size
|
3/4 |
|
Thread Type
|
NPT |
|
Gender
|
Female |
|
For Use With
|
Hydraulic Oil |
|
Housing Material
|
Cast Iron |
|
Performance
|
Continuous Flow |
|
Power Source
|
Manual |
|
Pump Type
|
Drum |
|
Rotary Vane Material
|
Carbon |
|
Spout Finish
|
Zinc Plated |
|
Spout Material
|
Steel |
|
Wetted Parts Material
|
Cast Iron, Graphite, Plastic, Carbon, Aluminum, Zinc Plated Steel, Stainless Steel, Buna-N, Galvanized Steel |
|
Country of Origin
|
India |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
Not Compliant |
|
Schedule B Number
|
841320.0000 |
|
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
No |
