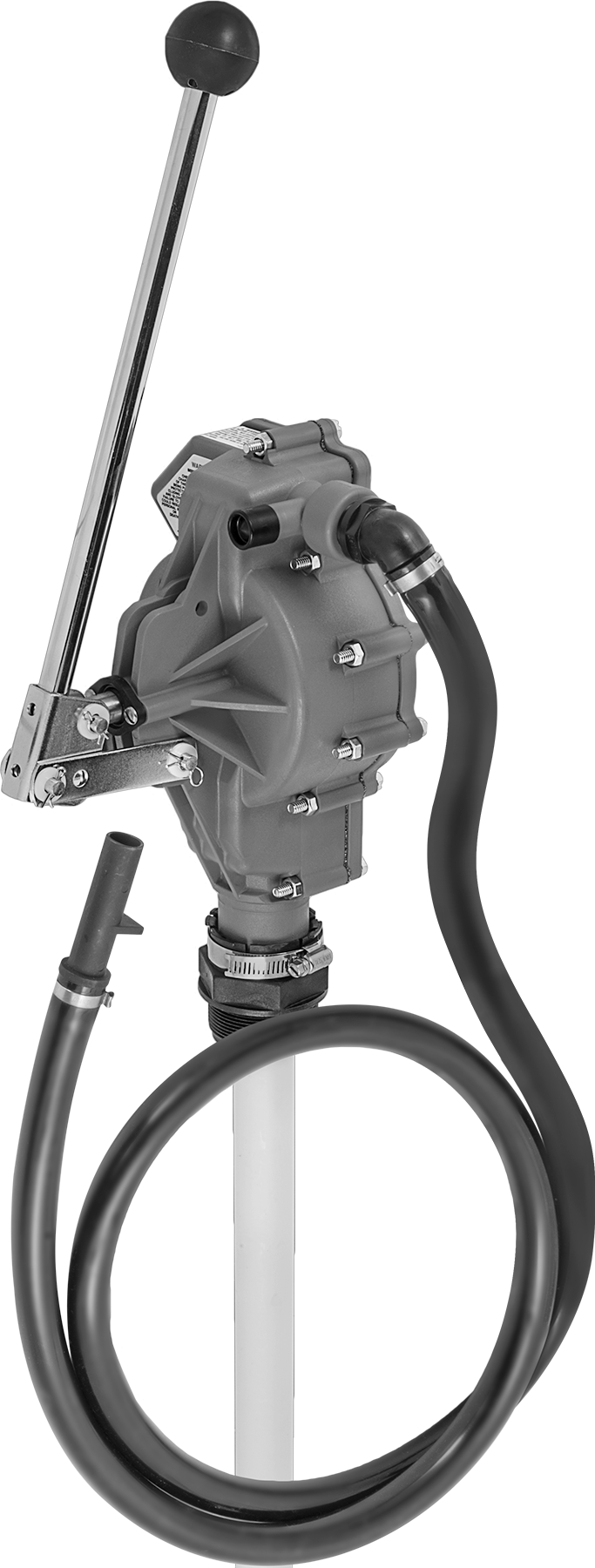

McMaster 4312K28 Quick-Dispensing Drum Pump for Fuel, with Nozzle, 32 oz/Stroke, for 55 Gallon Drum
Original price
$574.47
-
Original price
$574.47
Original price
$574.47
$574.47
-
$574.47
Current price
$574.47
These pumps have a 3/4" ID discharge hose for transfer applications and a vacuum breaker that drains the hose to prevent siphoning. A lever handle delivers fluid on both the forward and backward strokes for faster dispensing than other drum pumps. The handle can be mounted with the knob above or below the pump body. Lock the handle with a padlock (not included).
Always bond and ground your application for static control. For more information about bonding and grounding, see Sections 1910.106 and 1910.107 of the Federal OSHA Code or see bonding and grounding equipment.
Repair Kits — Repair kits include a gasket, a piston ring, O-rings, and valves.
| Flow Rate | 32 fl oz/stroke |
| For Container Size | 55 gal. |
| Maximum Viscosity | 410 cP |
| Temperature Minimum | Not Rated |
| Temperature Maximum | 70° F |
| For Drum Opening Size | 2 NPT |
| Includes | Drum Connector, Vacuum Breaker |
| Intake Tube Adjustability | Fixed |
| Intake Tube OD | 1 5/16" |
| Intake Tube Length | 34" |
| Intake Tube Material | Polyester Plastic |
| Discharge Location | Hose and Nozzle, Pump Body |
| Discharge Hose ID | 3/4" |
| Discharge Hose Length | 8 ft. |
| Discharge Hose Material | PVC |
| Pump Body Connection Port | Pipe |
| Pump Body Connection | Threaded |
| Pump Body Pipe Size | 3/4 |
| Pump Body Thread Type | NPT |
| Pump Body Gender | Female |
| Drum Pump Type | Lever Handle |
| Maximum Shackle Diameter | 1/4" |
| Excellent Chemical Resistance | Deionized Water, Diesel Fuel, Ethanol, Ethylene Glycol, Gasoline, Hydraulic Oil, Motor Oil, Salt Water, Water, Phosphoric Acid (<40% Concentration) |
| Moderate Chemical Resistance | Kerosene |
| For Use With | Diesel Fuel, Ethanol, Gasoline, Hydraulic Oil, Motor Oil |
| Housing Material | Polyester Plastic |
| Nozzle Material | Polyester Plastic |
| Performance | Quick Dispensing |
| Piston Material | Polyester Plastic |
| Power Source | Manual |
| Pump Type | Drum |
| Wetted Parts Material | Cork Rubber, Fluoroelastomer, Polyester Plastic, PVC, Stainless Steel |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 841320.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
