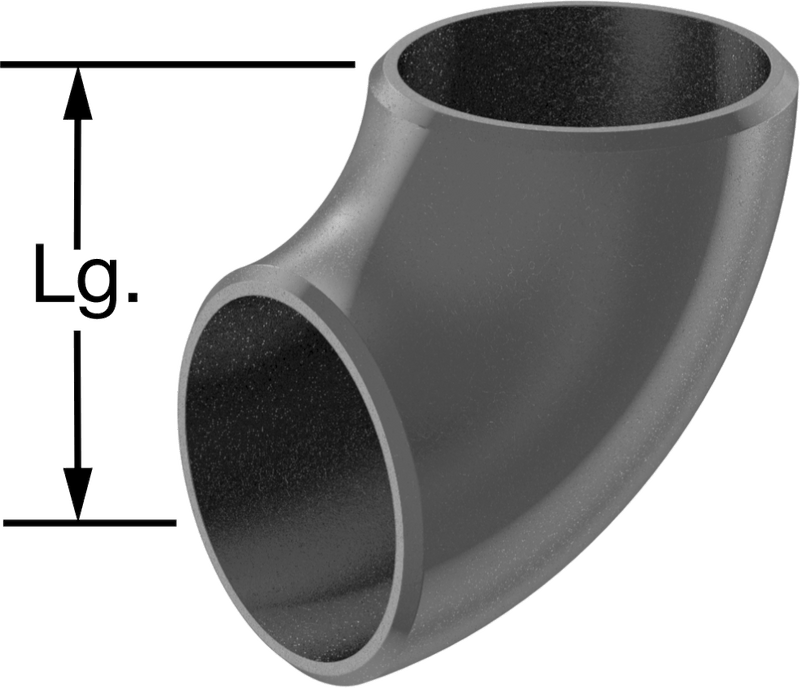

McMaster 43425K167 Standard-Wall Butt-Weld Steel Short 90° Elbow, Schedule 40, 2 Pipe Size, Unthreaded
Original price
$103.98
-
Original price
$103.98
Original price
$103.98
$103.98
-
$103.98
Current price
$103.98
Butt-weld fittings allow for a smooth connection that provides maximum flow. They have beveled ends that, when flush to pipe, create a trough for a strong, permanent weld. Fittings are also known as Schedule 40. They are for use in noncorrosive environments.
| Pressure Rating | Low Pressure |
| Wall Thickness Rating | Standard |
| Elbow Type | Short |
| Shape | 90° Elbow |
| Fitting Type | Connector |
| Fitting Connection | Butt Weld |
| Pipe Size | 2 |
| Construction | Seamless |
| OD | 2 3/8" |
| ID | 2.067" |
| Pipe Schedule | 40 |
| Material | Steel |
| Class | 150 |
| For Pipe Material | Steel |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Length | 2" |
| Specifications Met | ASME B16.9, ASTM A234 |
| System of Measurement | Inch |
| Threading | Unthreaded |
| Wall Thickness | 0.154" |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7307.93.2000 |
| USMCA Qualifying | No |
