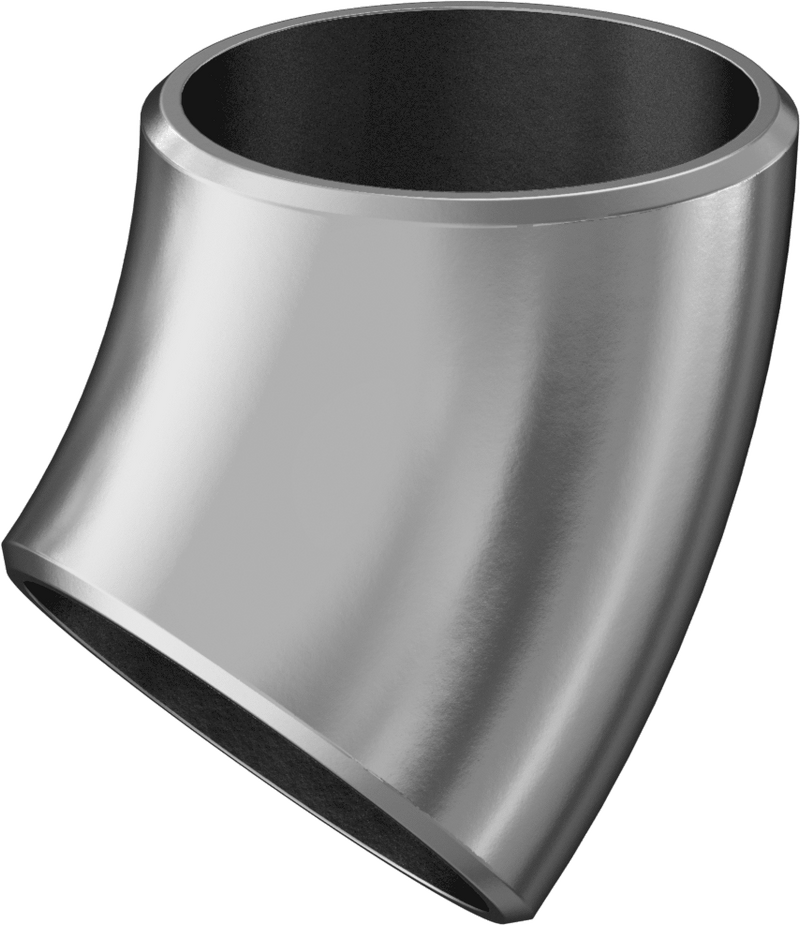

McMaster 43485K157 Standard-Wall Butt-Weld 6061 Aluminum 45° Elbow, Schedule 40, 3 Pipe Size, Unthreaded
Original price
$276.53
-
Original price
$276.53
Original price
$276.53
$276.53
-
$276.53
Current price
$276.53
Also known as Schedule 40 fittings, these have thicker walls than our thin-wall aluminum unthreaded pipe fittings. They have beveled ends that, when flush to pipe, create a trough for a strong weld that permits maximum flow. Fittings are lightweight with good corrosion resistance.
| Pressure Rating | Medium Pressure |
| Wall Thickness Rating | Standard |
| Shape | 45° Elbow |
| Fitting Type | Connector |
| Fitting Connection | Butt Weld |
| Pipe Size | 3 |
| Construction | Seamless |
| OD | 3 1/2" |
| ID | 3.068" |
| Wall Thickness | 0.216" |
| Pipe Schedule | 40 |
| Material | 6061 Aluminum |
| Class | 125 |
| For Use With | Air, Oil, Water |
| Performance | Corrosion Resistant |
| Specifications Met | ASME B16.9 |
| System of Measurement | Inch |
| Threading | Unthreaded |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7609.00.0000 |
| USMCA Qualifying | Yes |
