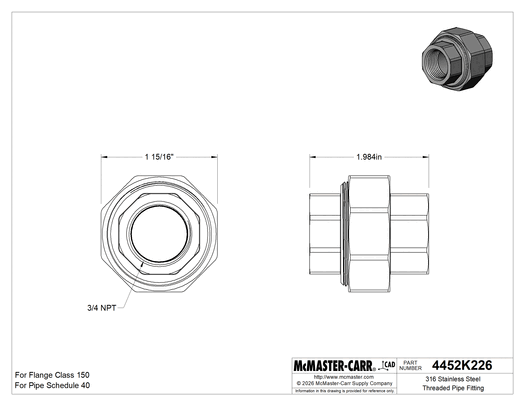

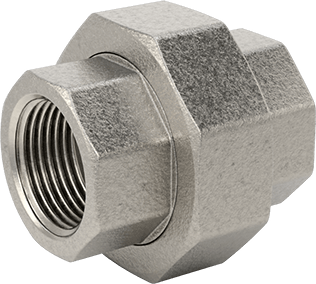

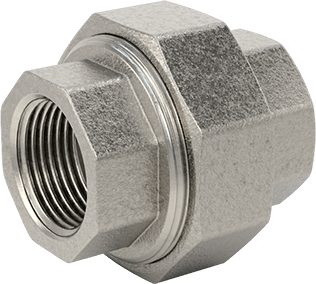

McMaster 4452K226 316 Stainless Steel Threaded Pipe Fitting Low-Pressure, Union Straight Connector, 3/4 NPT Female

McMaster 4452K226 316 Stainless Steel Threaded Pipe Fitting Low-Pressure, Union Straight Connector, 3/4 NPT Female

Name: McMaster 4452K226 316 Stainless Steel Threaded Pipe Fitting Low-Pressure, Union Straight Connector, 3/4 NPT Female
Brand: McMaster-Carr
SKU: RW4452K226
Price: 61.16 USD
Availability: InStock

$61.16 - $61.16

$61.16

$61.16 - $61.16

$61.16

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking.

316 stainless steel fittings have excellent corrosion resistance.

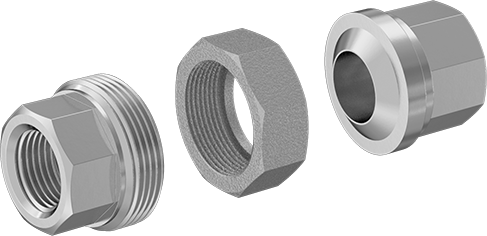

Union connectors separate into three pieces so you can access your line without unthreading pipe connections.

For Use With	Air, Natural Gas, Oil, Steam, Water
Shape	Straight
Type	Connector, Union
Body Shape	Octagon
Material	316 Stainless Steel
Pressure Class	150
Fabrication	Heat Treated
Connection Type	Pipe
Connection Style	Threaded
Connection	NPT Female
Pipe Size	3/4
Length	1 63/64"
Hex Width	1 15/16"
For Pipe – Schedule	40
For Pipe – Material	316 Stainless Steel, 316/316L Stainless Steel
For Flange – Class	150
For Flange – Material	316 Stainless Steel, 316/316L Stainless Steel
Specifications Met	ANSI/MSS SP-114, ASTM A351
System of Measurement	Inch
Maximum Steam Pressure	150 psi @ 350° F
Maximum Pressure	300 psi @ 72° F
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Peoples Republic of China or Vietnam
Schedule B	730729.0000
ECCN	2B999
