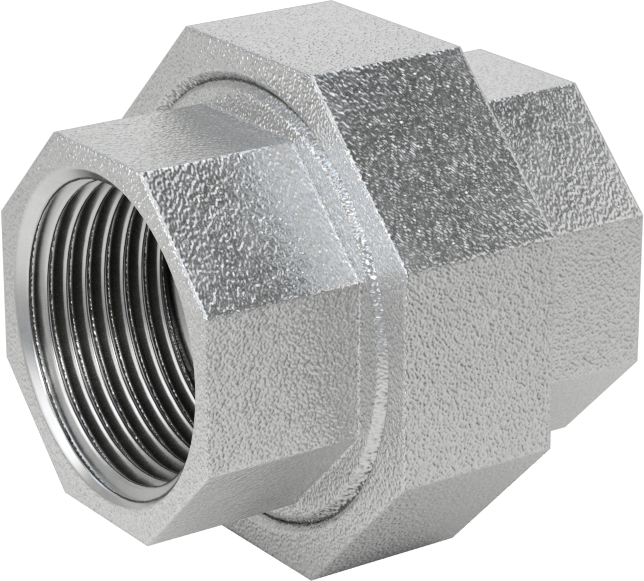

McMaster 44605K494 Low-Pressure Iron Pipe Union Connector, 1 NPT Female, Class 150, Octagon Body (sub for 44605K196)
Original price
$80.16
-
Original price
$80.16
Original price
$80.16
$80.16
-
$80.16
Current price
$80.16
Use these fittings for low-pressure applications in noncorrosive environments.
Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.
| Pressure Rating | Low Pressure |
| Shape | Straight |
| Fitting Type | Connector, Union |
| Fitting Connection | NPT Female |
| Pipe Size | 1" |
| Pressure Class | 150 |
| Body Shape | Octagon |
| Material | Iron |
| Maximum Pressure @ Temperature | 300 psi @ 72°F |
| Maximum Steam Pressure @ Temperature | 150 psi @ 350°F |
| Gasket Included | Yes |
| Gasket Material | Brass |
| Certification | UL Listed |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Hex Width | 2 5/64" |
| Length | 2 1/16" |
| Specifications Met | ASME B1.20.1, ASME B16.39 |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7307.19.9030 |
| USMCA Qualifying | Yes |
