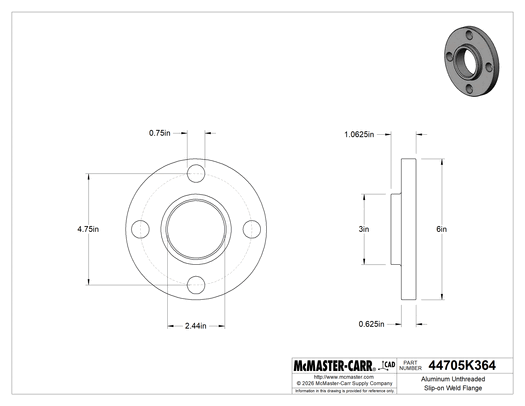

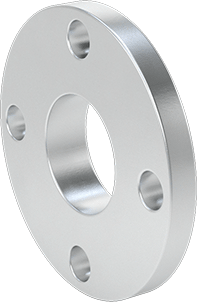

McMaster 44705K364 Aluminum Unthreaded Slip-on Weld Flange 2 Pipe Size
Original price
$116.69
-
Original price
$116.69
Original price
$116.69
$116.69
-
$116.69
Current price
$116.69
Also known as Pressure Class 125 flanges, these are for use in low-pressure applications. Bolt two same-size flanges together with a gasket (sold separately) to create an access point within a line. Flanges are aluminum, which is lightweight with good corrosion resistance.
Slip-on weld flanges have no internal stop; slide a pipe through the flange and weld on both sides.
| For Use With | Air, Oil, Water |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 125 |
| Connection Type | Pipe |
| Connection Style | Slip-On Weld × Flanged |
| Flanged Connection Surface | Flat |
| Gender | Female |
| Pipe Size | 2 |
| Flange OD | 6" |
| For Bolt Diameter | 5/8" |
| Bolt Hole Diameter | 3/4" |
| Number of Bolts | 4 |
| Bolt Circle Diameter | 4 3/4" |
| Maximum Pressure | 150 psi @ 72° F |
| Material | 356 Aluminum |
| For Fitting Schedule | 40 |
| For Fitting Material | Aluminum |
| For Pipe Schedule | 40 |
| For Pipe Material | Aluminum |
| Specifications Met | ASME B16.1 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B | 760900.0000 |
| ECCN | EAR99 |
