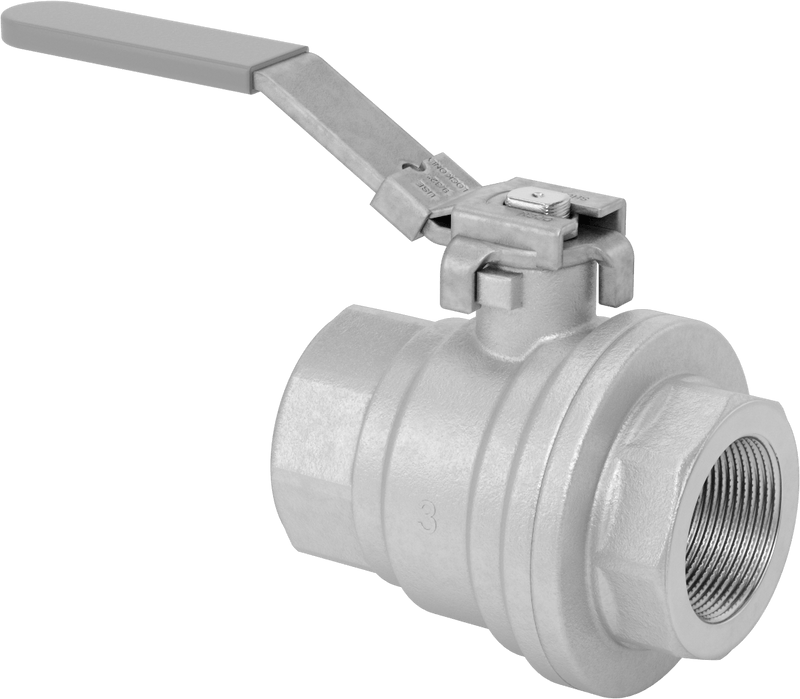

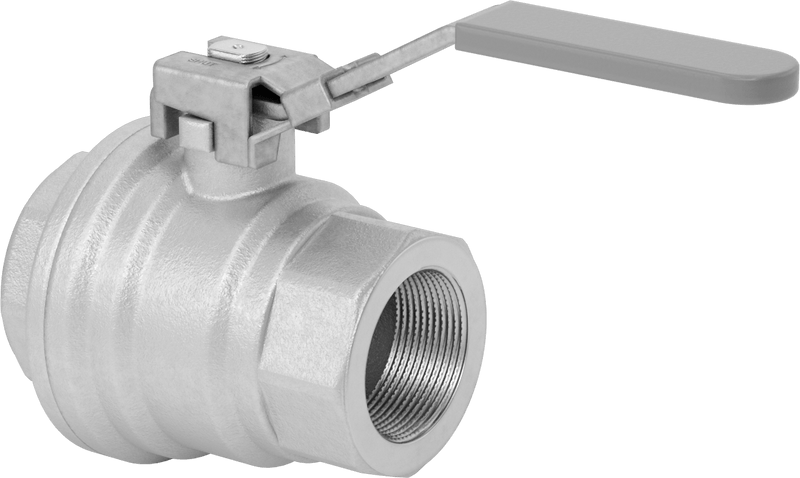

McMaster 4629K72 Brass Body On/Off Valve with Lever Handle, Lockable, 3 NPT Female, 450 psi
Original price
$753.40
-
Original price
$753.40
Original price
$753.40
$753.40
-
$753.40
Current price
$753.40
Use these valves in general purpose applications, such as those with water, oil, air, and inert gas. Brass valves have good corrosion resistance to air, water, and oil. Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Warning: Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
| Pipe Size | 3 |
| Flow Coefficient (Cv) | 740 |
| Maximum Pressure | 450 psi @ 100° F |
| Maximum Steam Pressure | 150 psi @ 350° F |
| Temperature Range | -40° to 350° F |
| Vacuum Rating | 29.9 in. of Hg |
| Port Type | Full |
| End-to-End Length | 7" |
| Valve Function | On/Off |
| Valve Type | Ball |
| Activation | Manual |
| Valve Operation | Handle |
| Handle Style | Lever |
| Handle Type | Lockable |
| Fitting Type | Connector |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Gender | Female × Female |
| Thread Type | NPT |
| Body Material | Brass |
| Ball Material | Brass |
| Seal Material | Fluoroelastomer Rubber |
| Seat Material | PTFE Plastic |
| Shape | Straight |
| For Maximum Shackle Diameter | 9/32" |

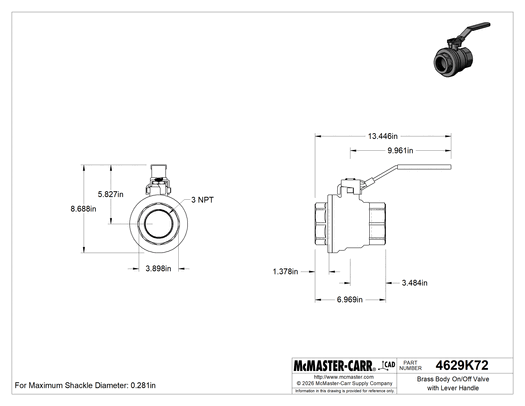

| Height | 8 11/16" |
| Length | 13 9/16" |
| For Use With | Water, Oil, Air, Argon, Helium, Krypton, Neon, Xenon, Steam |
| Specifications Met | CSA-US Certified, CSA Certified |
| CSA File Number | 112439_0_000 |
| UL File Number | MH15505 |
| Excellent Chemical Compatibility | Air, Argon, Butane, Diesel Fuel, Gasoline, Helium, Kerosene, Krypton, Neon, Nitrogen, Oil, Oxygen, Propane, Soap Solutions, Steam, Water, Xenon |
| Moderate Chemical Compatibility | Carbon Dioxide, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Spirits, Natural Gas, Salt Water, Toluene, Xylene |
| RoHS Compliance | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
| REACH Compliance | Not Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | Italy |
| Schedule B Number | 8481.80.1085 |
| ECCN | EAR99 |
