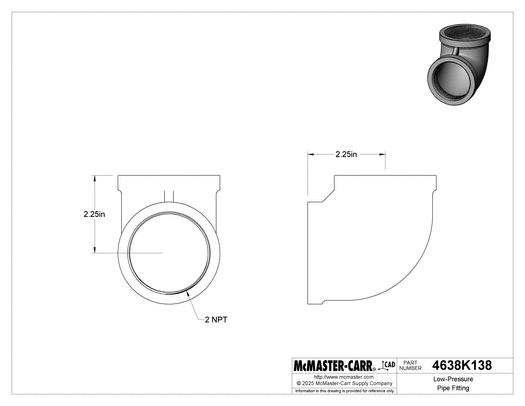

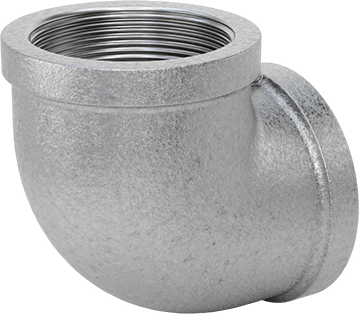

McMaster 4638K138 Low-Pressure Pipe Fitting Galvanized Iron, 90 Degree Elbow Connector, 2 NPT Female
Original price
$74.19
-
Original price
$74.19
Original price
$74.19
$74.19
-
$74.19
Current price
$74.19
The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.
|
For Use With
|
Air, Natural Gas, Oil, Steam, Water |
|
Shape
|
90° Elbow |
|
Type
|
Connector |
|
Pressure Class
|
150 |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Connection
|
NPT Female |
|
Pipe Size
|
2 |
|
Maximum Pressure
|
150 psi @ 72° F |
|
Maximum Steam Pressure
|
150 psi @ 350° F |
|
Material
|
Galvanized Iron |
|
For Pipe
|
|
|
Schedule
|
40 |
|
Material
|
Galvanized Steel |
|
For Flange
|
|
|
Class
|
150 |
|
Material
|
Galvanized Steel |
|
Specifications Met
|
ASME B1.20.1, ASME B16.3, ASTM A197, UL Listed |
|
Weight
|
2.235 lbs. |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
730719.9090 |
|
ECCN
|
EAR99 |
