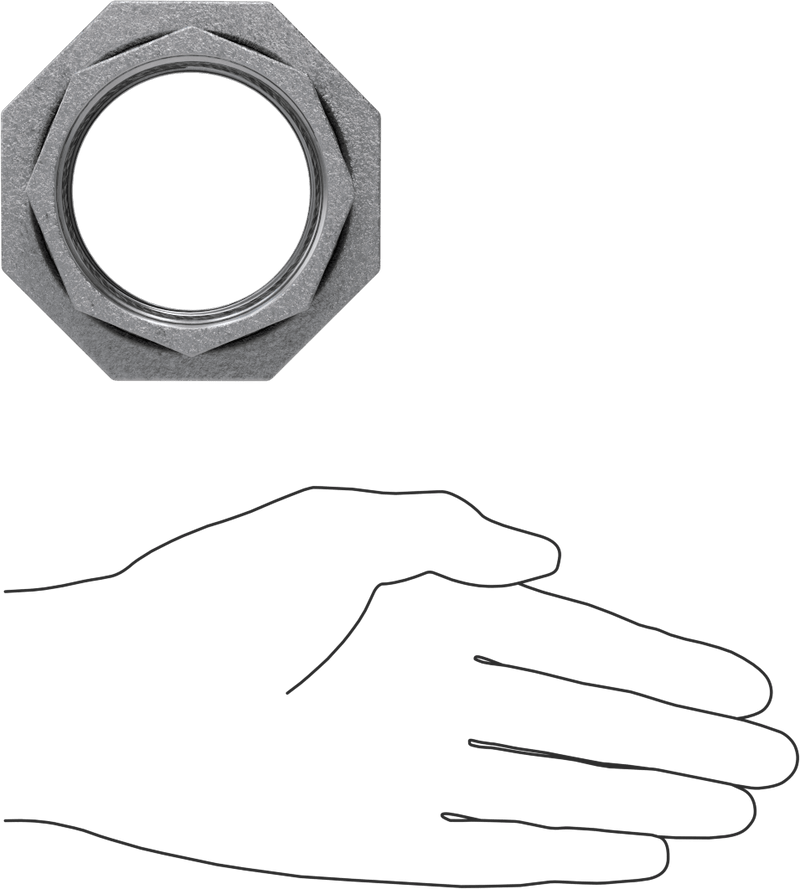

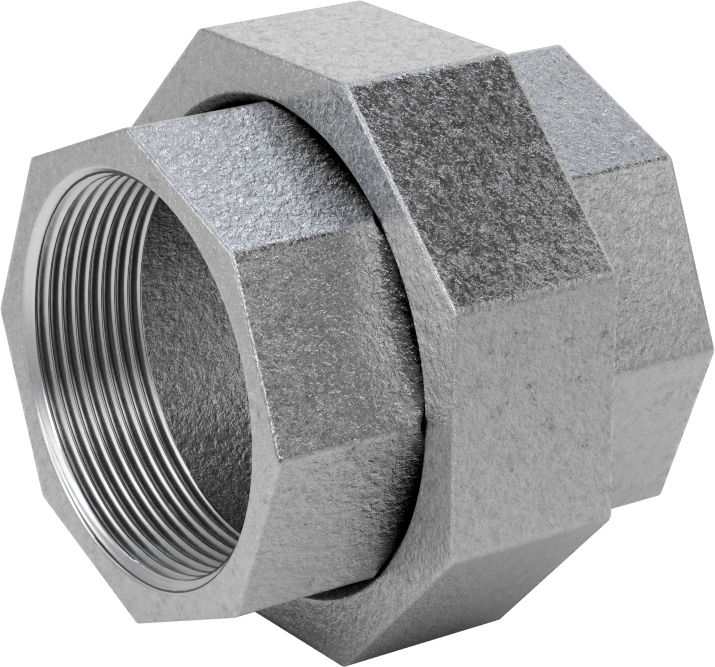

McMaster 4638K738 Low-Pressure Pipe Fitting, Galvanized Iron, Union Straight Connector, 2 NPT Female, Class 150
Original price
$143.89
-
Original price
$143.89
Original price
$143.89
$143.89
-
$143.89
Current price
$143.89
The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.
Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.
| Pressure Rating | Low Pressure |
| Shape | Straight |
| Fitting Type | Connector, Union |
| Gasket Included | Yes |
| Fitting Connection | NPT Female |
| Pipe Size | 2 |
| Pressure Class | 150 |
| Body Shape | Hex |
| Material | Galvanized Iron |
| Maximum Pressure @ Temperature | 300 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 150 psi @ 350° F |
| Gasket Material | Brass |
| Certification | UL Listed |
| Connects To | Pipe |
| Class | 150 |
| For Pipe Material | Galvanized Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |

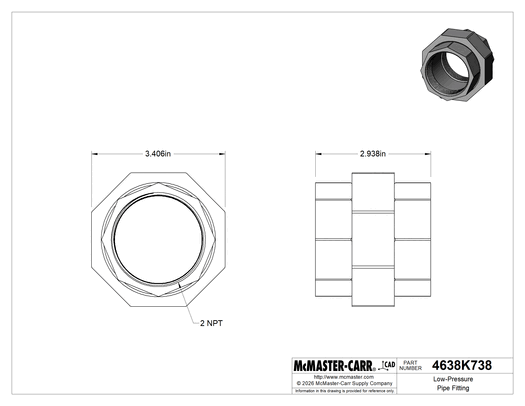

| Hex Width | 3 13/32" |
| Length | 2 15/16" |
| Specifications Met | ASME B1.20.1, ASME B16.39, ASTM A197 |
| System of Measurement | Inch |
| Weight | 2.95 lb. |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7307.19.9030 |
| USMCA Qualifying | Yes |
