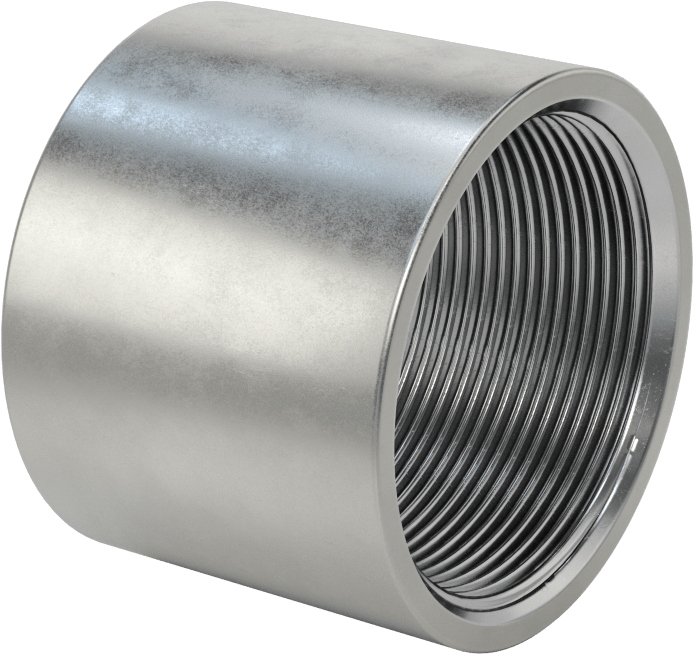

McMaster 46685K469 Low-Pressure Steel Straight Connector, Galvanized, Threaded From One End, 2 NPSC Female, Class 150
Original price
$87.29
-
Original price
$87.29
Original price
$87.29
$87.29
-
$87.29
Current price
$87.29
The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.
Compact Body — Compact straight connectors are able to fit into tight spaces. They are also known as merchant couplings.
NPSC Thread — NPSC (National Pipe Straight Coupling) threads are compatible with NPT threads.
| Pressure Rating | Low Pressure |
| Body Type | Compact |
| Shape | Straight |
| Fitting Type | Connector |
| Fitting Connection | NPSC Female |
| Pipe Size | 2 |
| Pressure Class | 150 |
| Material | Galvanized Steel |
| Maximum Pressure @ Temperature | 150 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 150 psi @ 350° F |
| Connects To | Pipe |
| Class | 150 |
| For Pipe Material | Galvanized Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Length | 2 1/8" |
| Specifications Met | ASTM A53, ASTM A865, ASTM B633 |
| System of Measurement | Inch |
| Threading | Fully Threaded |
| Weight | 1.04 lb. |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 7307.92.3010 |
| USMCA Qualifying | No |
