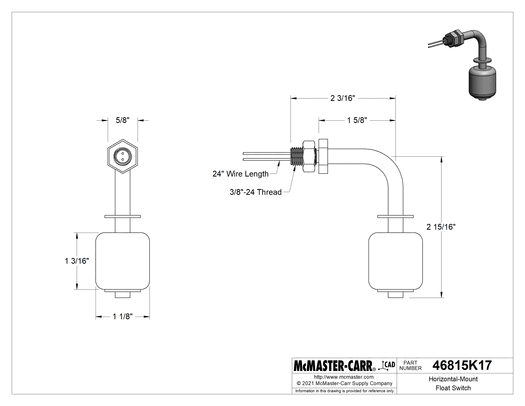

McMaster 46815K17 Horizontal-Mount Float Switch for Food and Beverage, Through-Wall Connection
Original price
$140.95
-
Original price
$140.95
Original price
$140.95
$140.95
-
$140.95
Current price
$140.95
Mount this switch through an unthreaded hole in your tank wall and secure with a nut from inside the tank. Often used in food-processing applications, they meet NSF/ANSI Standard 169.
|
Application
|
Signal |
|
For Use With
|
Beverage, Food |
|
For Hole Diameter
|
3/8" |
|
Min. Specific Gravity
|
0.8 |
|
Maximum Pressure
|
300 psi @ 70° F |
|
Temperature Range
|
35° to 390° F |
|

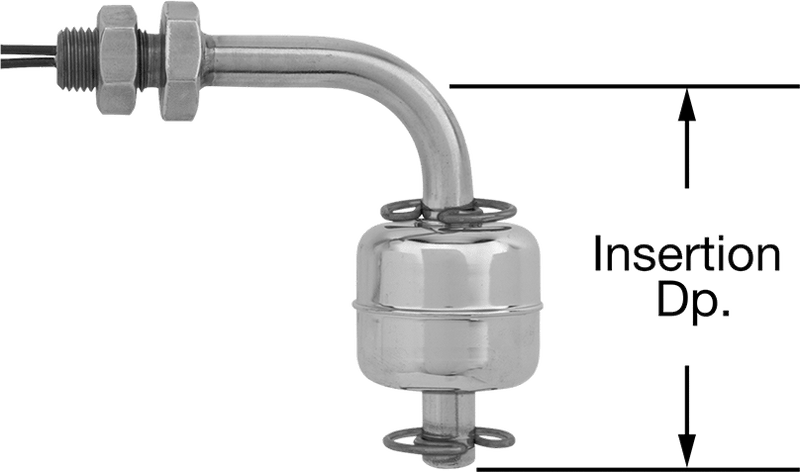

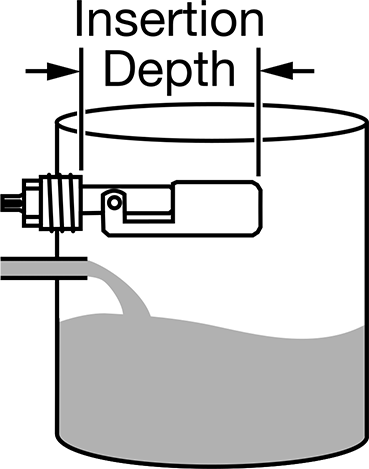

Insertion Depth
|
2 3/16" |
|
Number of Circuits Controlled
|
1 |
|
Switch Starting Position
|
1 Off (Normally Open)/1 On (Normally Closed) |
|
Industry Designation
|
SPST-NO |
|
Input Voltage
|
120V AC/240V AC |
|
Current
|
0.28 A @ 120 V AC |
|
Mounting Orientation
|
Horizontal |
|
Mount Type
|
Through Wall |
|
Body Material
|
316 Stainless Steel |
|
Float Material
|
316 Stainless Steel |
|
Electrical Connection
|
Wire Leads |
|
Includes
|
Mounting Nut |
|
Environment
|
Food Industry |
|
Specifications Met
|
UL Recognized Component, CSA Certified, NSF/ANSI 169 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
902610.7000 |
|
ECCN
|
EAR99 |
