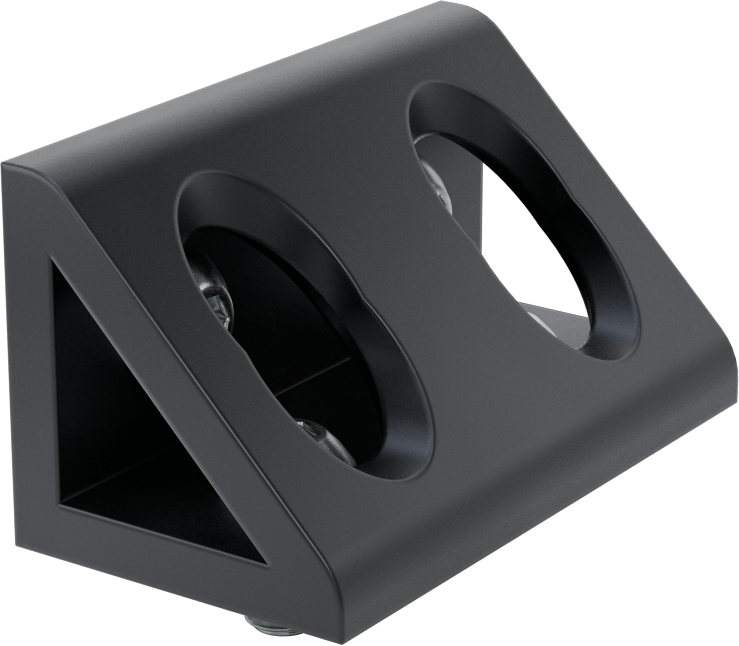

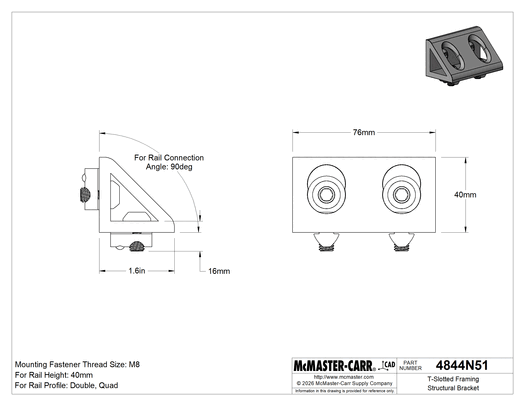

McMaster 4844N51 T-Slotted Framing Structural Bracket, Black Gusset Bracket for 40mm Double/Quad Rail, 1.58" Long
UPC: | Harmonization / Schedule B : 7616.99.5195
Country of Origin: China | Shipping Weight: 1.0 lbs
Original price
$69.33
-
Original price
$69.33
Original price
$69.33
$69.33
-
$69.33
Current price
$69.33
Connect T-slotted rails for structural stability. Fasteners are included.
Open Gusset — Reinforced to limit sway for more structural stability than standard corner brackets. Their sides are open, giving easy access to fasteners that you need to adjust frequently.
| Bracket Type | Corner |
| T-Slotted Framing Bracket Type | Standard |
| Gusset Bracket Type | Open |
| Corner Bracket Type | Gusset |
| For T-Slotted Framing Rail Profile | Double Quad |
| Color | Black |
| Height | 40 mm |
| Length | 1 37/64" |
| Material | Anodized Aluminum |
| Rail Machining Required | No |
| Type | Screw and Nut Set |
| Installation Type | Drop In |
| Head Style | Button |
| Thread Size | M8 |
| Thread Length | 16 mm |
| Color | Silver |
| Included | Yes |
| Number Included | 4 |
| For Rail Connection Angle | 90° |
| Framing Type | T-Slotted |
| Material Grade | 6063 Aluminum |
| Shape | 90° Angle |
| System of Measurement | Metric |
| T-Slotted Framing Component | Bracket |
| Temper Designation | T5 |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 761699.5195 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
