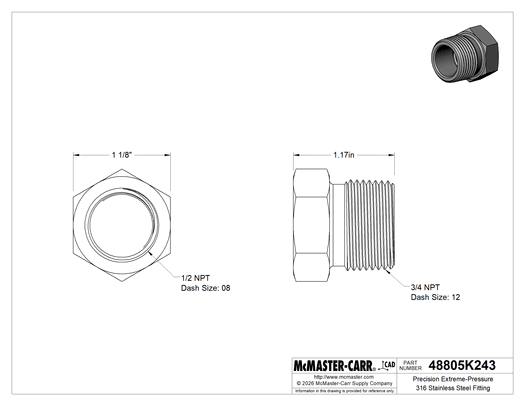

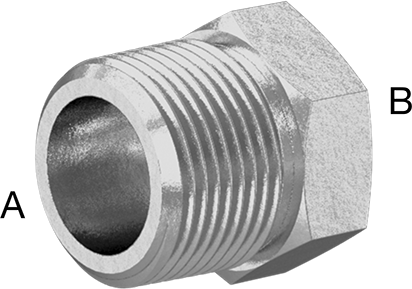

McMaster 48805K243 Precision Extreme-Pressure 316 Stainless Steel Fitting Bushing Reducing Adapter, 3/4 Male x 1/2 Female NPT

Name: McMaster 48805K243 Precision Extreme-Pressure 316 Stainless Steel Fitting Bushing Reducing Adapter, 3/4 Male x 1/2 Female NPT
Brand: McMaster-Carr
SKU: RW48805K243
Price: 79.06 USD
Availability: InStock

$79.06 - $79.06

$79.06

$79.06 - $79.06

$79.06

Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines. They are 316 stainless steel for excellent corrosion resistance.

For Use With	Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water
Shape	Straight
Type	Reducing Adapter, Bushing
Body Shape	Hex
Material	316 Stainless Steel
Fabrication	Machined
Thread Fabrication	Rolled
Connection Type	Pipe
Connection Style	Threaded
Connection	NPT Male × NPT Female
Pipe Size (A)	3/4
Pipe Size (B)	1/2
Dash Size (A)	12
Dash Size (B)	08
Length	1 11/64"
Hex Width	1 1/8"
Maximum Pressure	4,900 psi @ 72° F
Maximum Steam Pressure	4,900 psi @ 300° F
Specifications Met	ASME B1.20.1, ASME B31.1, ASME B31.3
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	Yes
Schedule B	730729.0000
ECCN	2B999
