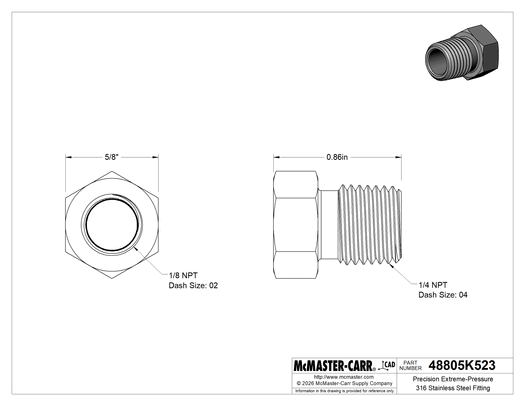

McMaster 48805K523 Precision Extreme-Pressure 316 Stainless Steel Fitting Bushing Reducing Adapter, 1/4 Male x 1/8 Female NPT
Original price
$45.35
-
Original price
$45.35
Original price
$45.35
$45.35
-
$45.35
Current price
$45.35
Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines. They are 316 stainless steel for excellent corrosion resistance.
| For Use With | Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water |
| Shape | Straight |
| Type | Reducing Adapter, Bushing |
| Body Shape | Hex |
| Material | 316 Stainless Steel |
| Fabrication | Machined |
| Thread Fabrication | Rolled |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | NPT Male × NPT Female |

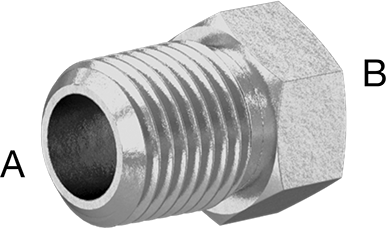

| Pipe Size (A) | 1/4 |
| Pipe Size (B) | 1/8 |
| Dash Size (A) | 04 |
| Dash Size (B) | 02 |
| Length | 55/64" |
| Hex Width | 5/8" |
| Maximum Pressure | 6,000 psi @ 72° F |
| Maximum Steam Pressure | 6,000 psi @ 300° F |
| Specifications Met | ASME B1.20.1, ASME B31.1, ASME B31.3 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B | 730729.0000 |
| ECCN | 2B999 |
