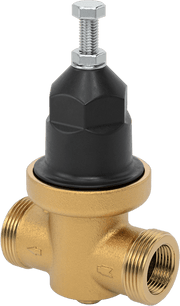

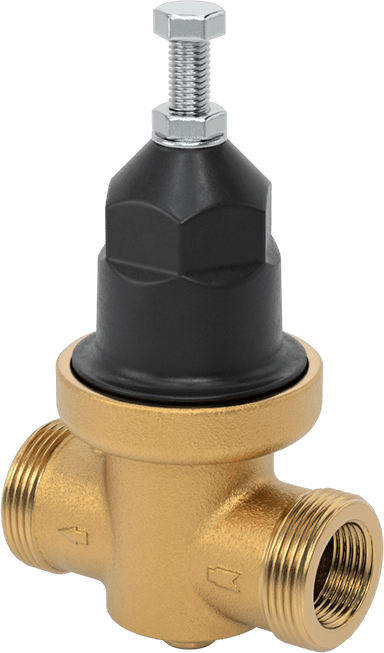

McMaster 4946K12 Pressure-Regulating Valve for Drinking Water, 3/4 NPT Female Inlet x Outlet
Original price
$356.47
-
Original price
$356.47
Original price
$356.47
$356.47
-
$356.47
Current price
$356.47
These valves meet NSF/ANSI 61 for use in drinking water systems. They automatically reduce a high, variable inlet pressure to a lower, stable outlet pressure. Adjust the outlet pressure within the range. All valves have a gauge port. An internal strainer traps debris. Body is bronze for durability and a long service life.
| Pipe Size | 3/4 |
| Location | Side |
| Connection Port | Pipe |
| Connection | Threaded |
| Thread Type | NPT |
| Gender | Female |
| Maximum Pressure | 400 psi |
| Body | Bronze |
| Seal | Buna-N |
| Diaphragm | Buna-N |
| Features | Internal Strainer |
| Pipe Size | 3/4 |
| Location | Side |
| Connection Port | Pipe |
| Connection | Threaded |
| Thread Type | NPT |
| Gender | Female |
| Pressure Range | 15 psi to 75 psi |
| Pressure Adjustment Method | Screw |
| Pressure Gauge Included | No |
| Number of Ports | 1 |
| Pipe Size | 1/4 |
| Location | Bottom |
| Connection | NPT Female |
| End-to-End Length | 3 1/2" |
| For Use With | Drinking Water |
| Temperature Range | 33° F to 140° F |
| Certification | ASSE 1003 Listed, CSA Certified, IAPMO Listed |
| Food Industry Standard | NSF/ANSI 61 |
| Actuation | Pressure |
| Environment | Food and Beverage |
| Flow Coefficient (Cv) | Not Rated |
| Shape | Straight |
| Type | Pressure Regulator |
| Function | Pressure Regulation |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848180.9015 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
