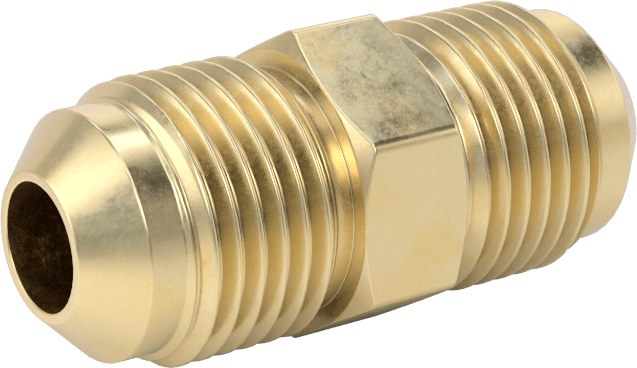

McMaster 50635K514 45 Degree Flared Fitting for Copper and Brass Tubing, Straight Connector for 3/8" Tube OD
Original price
$45.76
-
Original price
$45.76
Original price
$45.76
$45.76
-
$45.76
Current price
$45.76
Tighten a nut to install these fittings on 45° flared tubing. Unlike 37° flared fittings, you don't need a sleeve (ferrule) to form a tight seal. Also known as refrigeration and SAE fittings. You'll need one nut (sold separately) for each tube end.
| Shape | Straight |
| Fitting Type | Connector |
| Fitting Connection | 45° Flared, Flared |
| Connects To | Tube |
| Gender | Male |
| Material | Brass |
| For Tube OD | 3/8" |
| Maximum Pressure @ Temperature | 1,000 psi @ 72° F |
| Temp. Range | -65° F to 250° F |
| Material | Brass, Copper |
| Fabrication | Seamless |
| Certification | UL Listed |
| Flare Style | Flared |
| For Tube Specifications Met | ASTM B280 |
| For Tube Wall Thickness | 0.032" |
| For Use With | Air, Cutting Oil, Diesel Fuel, Fuel Oil, Mineral Oil, Refrigerant, Water |
| Length | 1 31/64" |
| Maximum Temperature | 250° F |
| Minimum Temperature | -65° F |
| Pressure Rating | Medium Pressure |
| Specifications Met | SAE J512, SAE J513 |
| System of Measurement | Inch |
| Thread Size | 5/8"-18 |
| Thread Type | UN/UNF (SAE 45°) |
| UL File Number | MM23 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions | 6(c) |
| Schedule B Number | 741220.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
