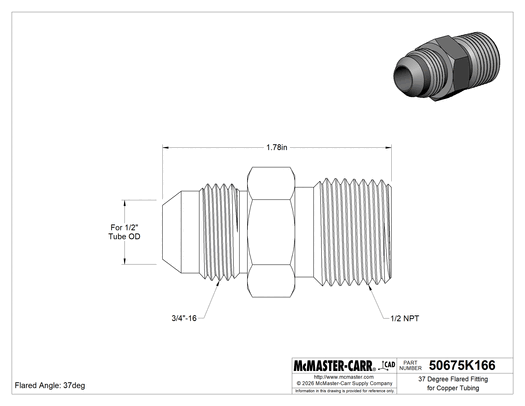

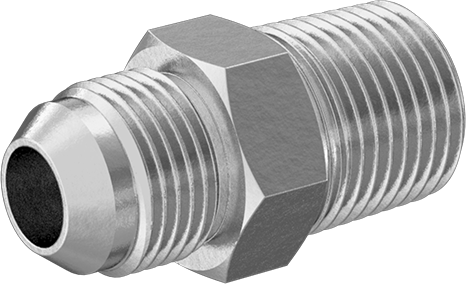

McMaster 50675K166 37 Degree Flared Fitting for Copper Tubing Adapter for 1/2" Tube OD x 1/2 NPT Male
Original price
$41.65
-
Original price
$41.65
Original price
$41.65
$41.65
-
$41.65
Current price
$41.65

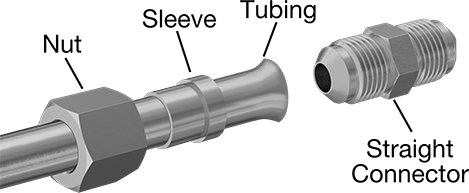

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They can handle higher pressures than 45° flared fittings. Fittings are brass for good corrosion resistance. They require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
| Shape | Straight |
| Type | Adapter |
| For Use With | Air, Fuel Oil, Mineral Oil, Water |
| Tube Connection | |
| Connection Style | Flared |
| Flared Angle | 37° |
| Flared Connection Type | Standard |
| Gender (Tube Side) | Male |
| Thread Size | 3/4"-16 |
| Thread Type | UN/UNF (JIC) |
| For Tube OD | 1/2" |
| Pipe Connection | |
| Connection Style | Threaded |
| Gender (Pipe Side) | Male |
| Thread Type | NPT |
| Pipe Size | 1/2 |
| Material | 360 Brass |
| Maximum Pressure | 3,200 psi @ 72° F |
| Temperature Range | -40° to 400° F |
| Length | 1 25/32" |
| For Tube Material | Copper |
| For Tube Fabrication | Seamless |
| Specifications Met | ISO 8434, MIL-F-18866, SAE J514 |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B | 741220.0000 |
| ECCN | EAR99 |
