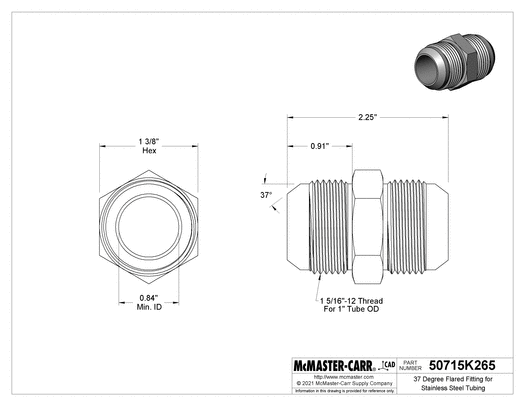

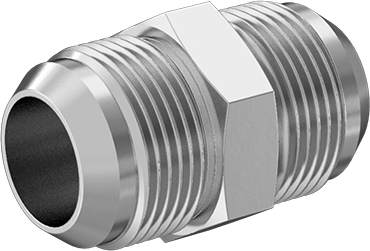

McMaster 50715K265 37 Degree Flared Fitting for Stainless Steel Tubing Straight Connector for 1" Tube OD
McMaster 50715K265 37 Degree Flared Fitting for Stainless Steel Tubing Straight Connector for 1" Tube OD

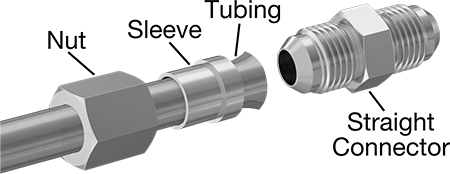

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They withstand high pressure, so they’re often used in hydraulic applications. Made from 316 stainless steel, they resist corrosion from water and chemicals. A complete fitting requires a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
|
Shape
|
Straight |
|
Type
|
Connector |
|
For Use With
|
Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water |
|
Tube Connection
|
|
|
Connection Style
|
37° Flared |
|
Flared Connection Type
|
Standard |
|
Gender
|
Male |
|
Thread Type
|
UN/UNF (JIC) |
|
Thread Size
|
1 5/16"-12 |
|
Dash Size
|
16 |
|
For Tube OD
|
1" |
|
Material
|
316 Stainless Steel |
|
Maximum Pressure
|
4,500 psi @ 72° F |
|
Temperature Range
|
-420° to 1200° F |
|
Length
|
2 1/4" |
|
For Tube Material
|
304 Stainless Steel, 316 Stainless Steel |
|
For Tube Specifications Met
|
ASTM A213, ASTM A249, ASTM A269 |
|
For Tube Fabrication
|
Seamless, Welded |
|
Specifications Met
|
ISO 8434, SAE J514 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
730722.1000 |
|
ECCN
|
2B999 |
