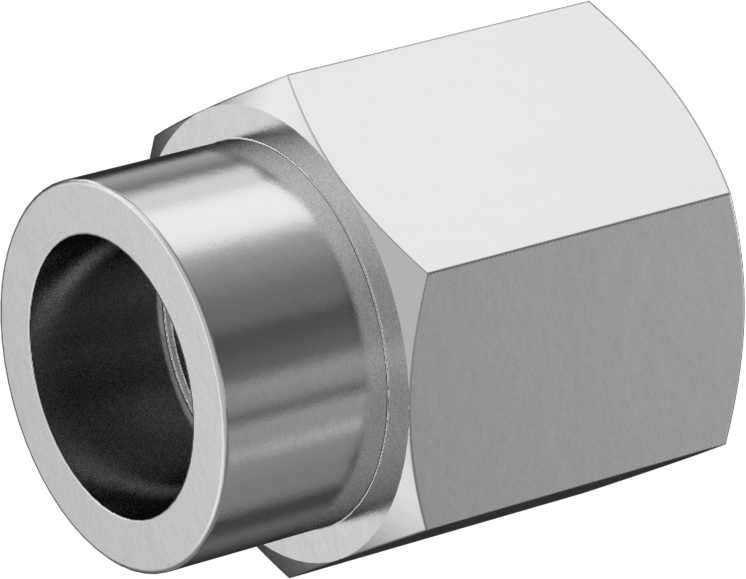

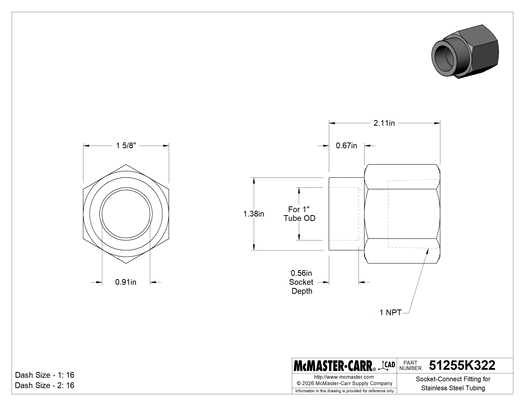

McMaster 51255K322 Socket-Connect Fitting for SS Tubing, 316 SS Adapter, 1" Tube OD × 1 NPT Female, 4300 psi
Original price
$319.13
-
Original price
$319.13
Original price
$319.13
$319.13
-
$319.13
Current price
$319.13
These socket-connect fittings have the strength to handle high pressures up to 4,300 psi. Easier to weld than butt-weld fittings, they don’t need to align perfectly to tubing. Insert tubing into the socket end and weld to create a permanent, leak-tight connection. Fittings are 316 stainless steel for excellent corrosion resistance.
| For Use With | Air, Hydraulic Fluid, Water |
| Shape | Straight |
| Type | Adapter |
| Socket-Connect End | Weld, Female, 9/16" Socket Depth, Dash 16, for 1" Tube OD |
| Threaded End | NPT Female, Dash 16, 1 Pipe Size |
| Material | 316/316L Stainless Steel |
| Maximum Pressure | 4,300 psi @ 72° F |
| Maximum Vacuum | Not Rated |
| Temperature Range | -420° to 1200° F |
| Length | 2 7/64" |
| For Tube Material | 304 Stainless Steel, 316 Stainless Steel |
| For Tube Specifications Met | ASTM A269 |
| For Tube Fabrication | Seamless, Welded |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B Number | 7307.22.5000 |
| ECCN | 2B999 |
