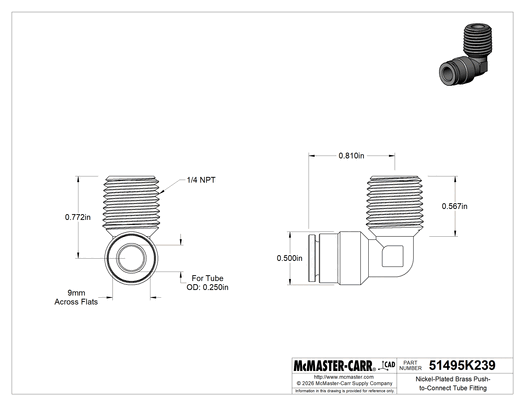

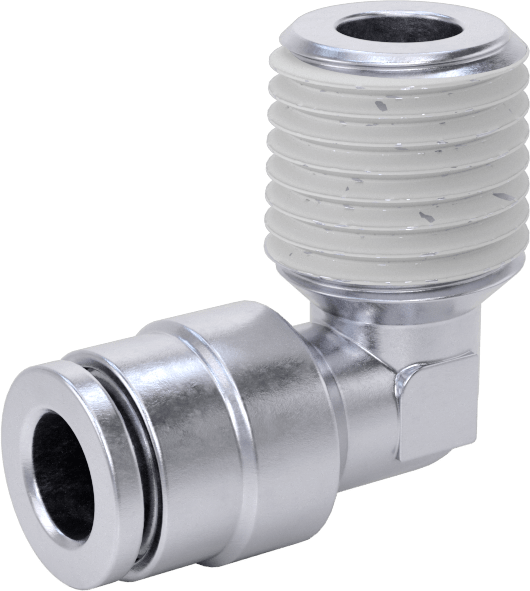

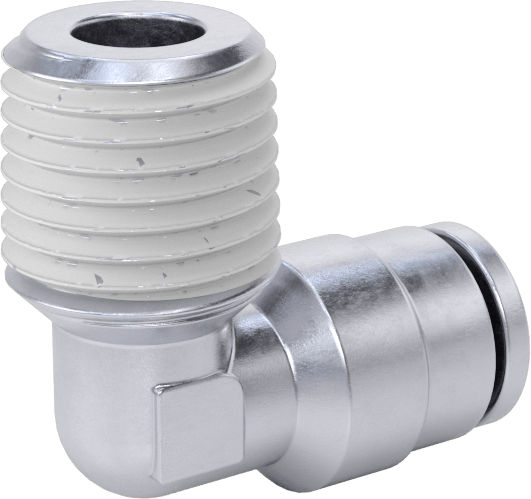

McMaster 51495K239 Nickel-Plated Brass Push-to-Connect Tube Fitting, 90° Elbow Adapter, for 1/4" Tube OD × 1/4 NPT Male, for Air
Original price
$46.56
-
Original price
$46.56
Original price
$46.56
$46.56
-
$46.56
Current price
$46.56
Made of nickel-plated brass, these fittings have better corrosion resistance than unplated brass fittings. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring or sleeve and pull the tubing out of the fitting.
Fittings with thread sealant offer extra protection against leaks.
| Shape | 90° Elbow |
| Type | Adapter |
| For Use With | Air, Lubricated Air |
| Push-to-Connect End | Standard, Female, for 1/4" Tube OD, Buna-N O-Ring |
| Threaded End | NPT Male, 1/4 Pipe Size |
| Material | Nickel-Plated Brass |
| Release Type | Ring |
| Release Ring Material | Nickel-Plated Brass |
| Maximum Pressure | 230 psi @ 72° F |
| Maximum Vacuum | 28 in. of Hg @ 72° F |
| Temperature Range | 0° to 140° F |
| For Tube Material | Nylon Plastic, Polyethylene Plastic, Polyurethane Rubber |
| Features | Thread Sealant |
| RoHS Compliance | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
| REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | Czech Republic |
| Schedule B Number | 7412.20.0000 |
| ECCN | EAR99 |
