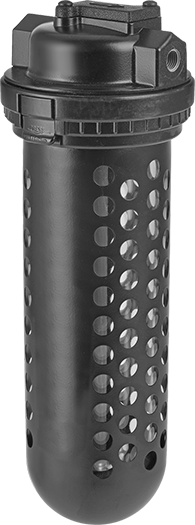

McMaster 5163K21 Desiccant Compressed Air Dryer, Plastic Bowl with Steel Guard, 1/2 NPT Female, 10 scfm
Original price
$710.71
-
Original price
$710.71
Original price
$710.71
$710.71
-
$710.71
Current price
$710.71
Once aftercoolers and separators have removed the bulk of the water, use these dryers to remove any remaining moisture in your air line. To reuse saturated desiccant, heat it in an oven at its reactivation temperatureβyou'll know it's dry when the color changes. Install these dryers after an oil filter to protect the desiccant.
Clear Bowl β Dryers with a clear bowl or a sight glass let you keep an eye on the contents inside.
| Style | A |
| Bowl Material | Polycarbonate |
| Bowl Type | Clear |
| Guard Material | Steel |
| Inlet/Outlet Connection | Threaded, 1/2 NPT Female |
| Maximum Flow Rate @ Pressure | 10 scfm @ 100 psi |
| Dew Point | -45Β° F |
| Maximum Temperature | 125Β° F |
| Maximum Pressure | 150 psi |
| Housing Material | Zinc Alloy |
| Overall Height | 13 1/2" |
| Overall Diameter | 4 3/4" |
| Component | Air Dryer |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| Schedule B Number | 842139.0115 |
| USMCA Qualifying | No |
