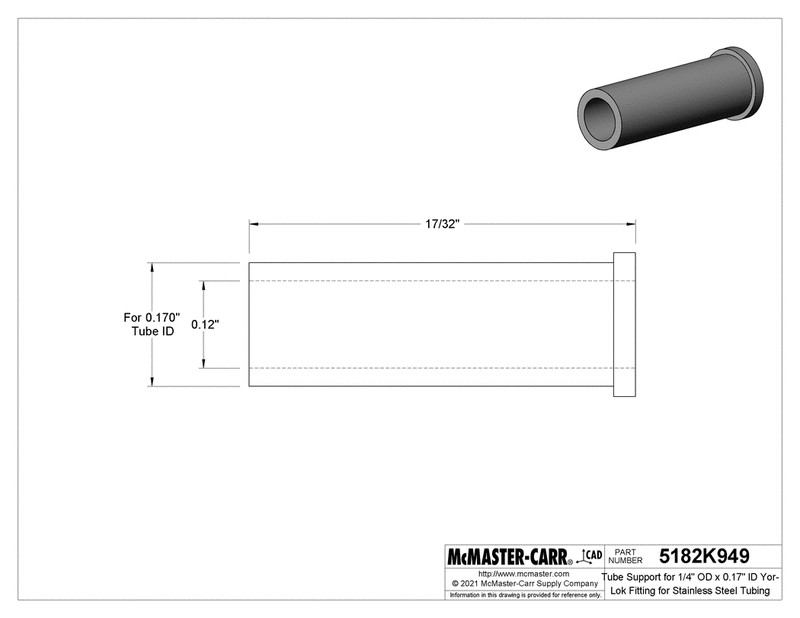

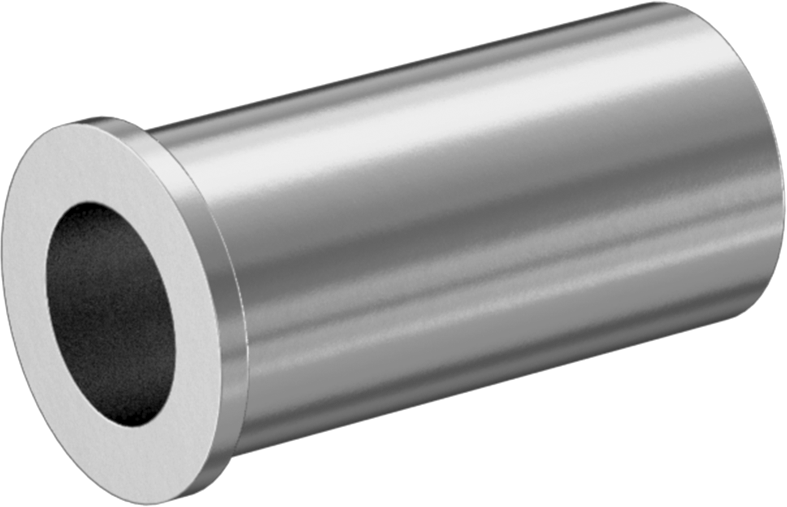

McMaster 5182K949 Tube Support for 1/4" OD x 0.17" ID Tube
Original price
$31.47
-
Original price
$31.47
Original price
$31.47
$31.47
-
$31.47
Current price
$31.47
Use with soft plastic tubing to prevent the tube from collapsing.
|
Shape
|
Straight |
|
Type
|
Tube Support |
|
For Use With
|
Air, Cutting Oil, Fuel Oil, Gasoline, Hydraulic Fluid, Mineral Oil, Water |
|
Tube Connection
|
|
|
Connection Style
|
Yor-Lok |
|
Yor-Lok Connection Type
|
Standard |
|
Dash Size
|
04 |
|
For Tube
|
|
|
OD
|
1/4" |
|
ID
|
0.17" |
|
Tube Support Material
|
316 Stainless Steel |
|
Tube Support Style
|
Smooth |
|
Maximum Pressure
|
Not Rated |
|
Maximum Vacuum
|
Not Rated |
|
Temperature Range
|
-420° to 1200° F |
|
Length
|
17/32" |
|
Sterilize With
|
Steam (Autoclaving) |
|
Compatible With
|
Let-Lok, Parker A-Lok, Swagelok® |
|
For Tube Material
|
Plastic |
|
For Tube Hardness Rating
|
Soft |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
730729.0000 |
|
ECCN
|
2B999 |
