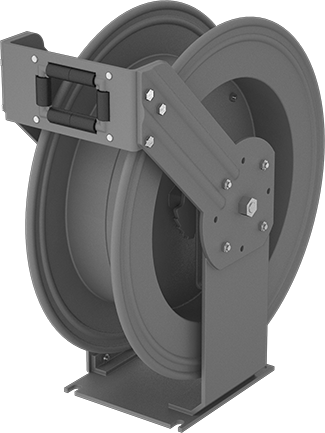

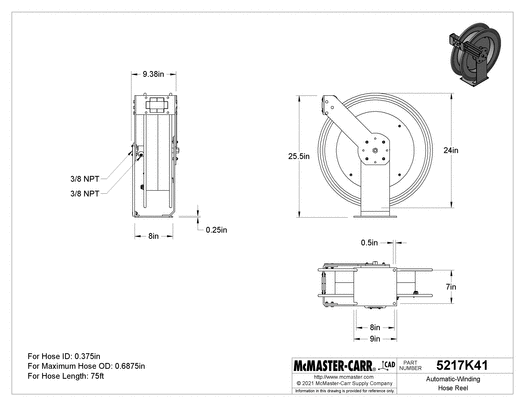

McMaster 5217K41 Automatic-Winding Hose Reel with Brass 3/8 NPT Female Inlet, for 75 Feet of Hose
Original price
$1,109.13
-
Original price
$1,109.13
Original price
$1,109.13
$1,109.13
-
$1,109.13
Current price
$1,109.13
These reels have more support than medium duty reels, so you can pull the hose out at an angle. Hose locks in place when pulled out; a quick tug causes it to retract. Connect your hose with NPT pipe threads to the reel outlet; connect your supply line to the reel inlet.
|
Pipe Size
|
|
|
Inlet
|
3/8 |
|
Outlet
|
3/8 |
|
Inlet
|
|
|
Fitting Material
|
Brass |
|
Pipe Connection
|
Threaded NPT Female |
|
Fitting Seal Type
|
Buna-N Rubber Gasket |
|
Outlet Pipe Connection
|
Threaded NPT Female |
|
For Hose
|
|
|
ID
|
3/8" |
|
Maximum OD
|
11/16" |
|
Length
|
75 ft. |
|
Maximum Pressure
|
3,000 psi @ 72° F |
|
Height
|
25 1/2" |
|
Width
|
9 1/4" |
|
Depth
|
23" |
|
Material
|
Powder-Coated Steel |
|
Mounting
|
|
|
Fasteners Included
|
No |
|
Number of Holes
|
4 |
|
Hole Diameter
|
1/2" |
|
Base Length
|
9" |
|
Base Width
|
8" |
|
Location
|
Ceiling, Floor, Wall |
|
Support Bracket Thickness
|
1/4" |
|
Temperature Range
|
-40° to 250° F |
|
Color
|
Blue |
|
Hose Included
|
No |
|
Reel Type
|
Open |
|
Winding Method
|
Automatic |
|
RoHS
|
RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
847989.9900 |
|
ECCN
|
EAR99 |
