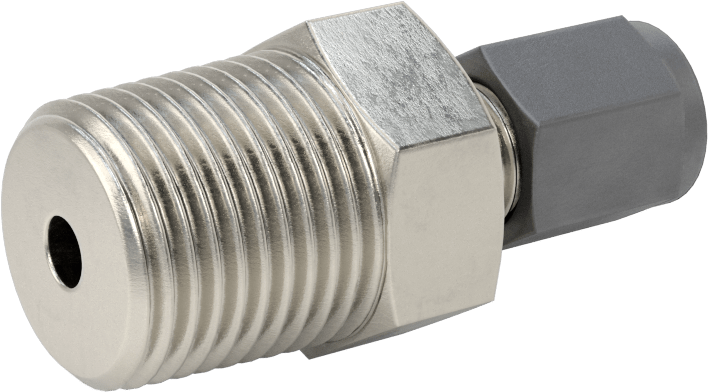

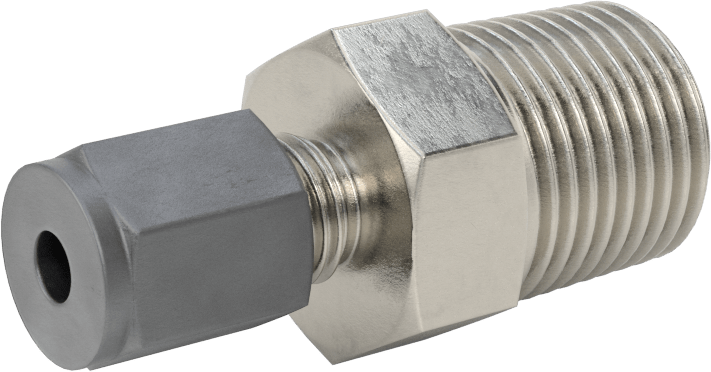

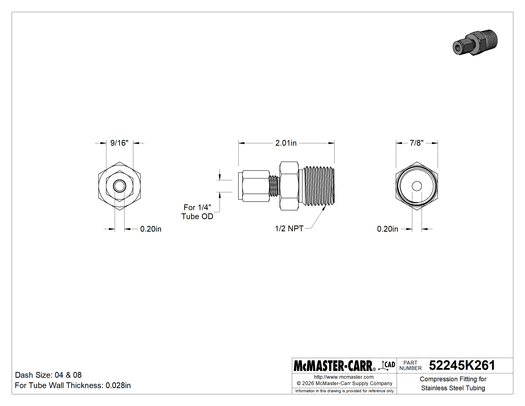

McMaster 52245K261 Compression Fitting for SS Tubing, 316 SS Straight Adapter, for 1/4" Tube OD × 1/2 NPT Male, 5000 psi
Original price
$139.45
-
Original price
$139.45
Original price
$139.45
$139.45
-
$139.45
Current price
$139.45
A single sleeve (ferrule) bites into tubing as you tighten the nut, creating a strong seal. The nut and sleeve are included. Fittings are also known as flareless fittings or bite fittings. Use them in low- to medium-pressure applications.
316 stainless steel fittings have excellent corrosion resistance.
| Shape | Straight |
| Type | Adapter |
| For Use With | Air, Hydraulic Fluid, Water |
| Compression End | Standard, Female, Dash 04, 1/4" OD, 0.028" Wall |
| Threaded End | NPT Male, Dash 08, 1/2 Pipe Size |
| O-Ring Material | Buna-N Rubber |
| Material | 316 Stainless Steel |
| Nut Material | 316 Stainless Steel |
| Sleeve Material | 17-4 PH Stainless Steel |
| Maximum Pressure | 5,000 psi @ 72° F |
| Maximum Vacuum | Not Rated |
| Temperature Range | -420° to 1200° F |
| Length | 2" |
| For Tube Material | 304 Stainless Steel, 316 Stainless Steel |
| For Tube Specifications Met | ASTM A269 |
| For Tube Fabrication | Seamless |
| Specifications Met | SAE J514 |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B Number | 7307.22.5000 |
| ECCN | 2B999 |
