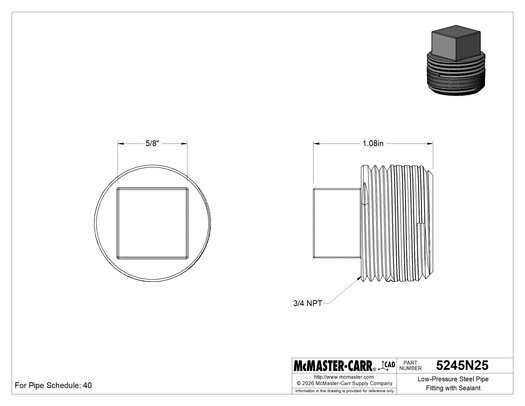

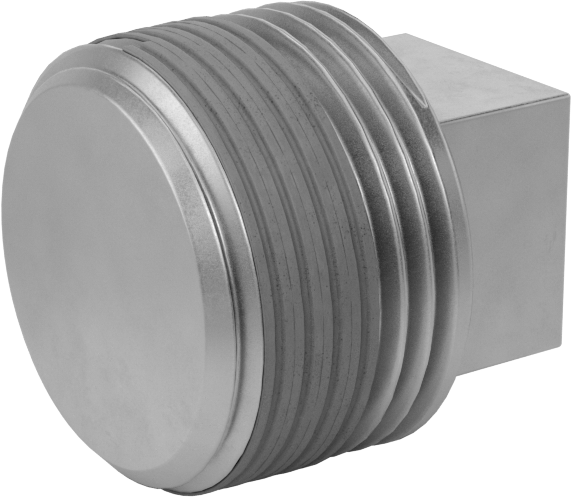

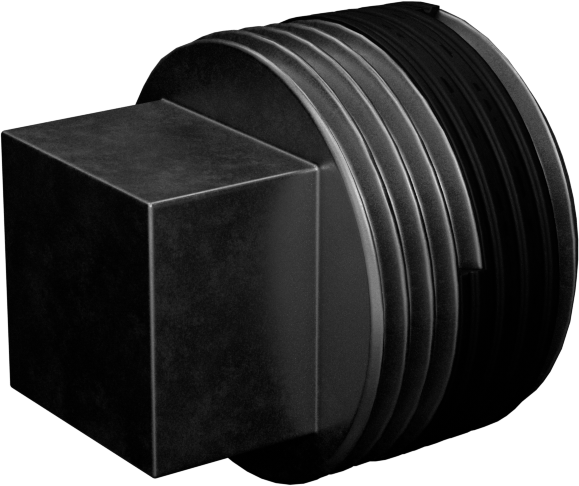

McMaster 5245N25 Low-Pressure Steel Pipe Fitting with Sealant, Plug, External Square Drive, 3/4 NPT Male, Class 150
Original price
$38.04
-
Original price
$38.04
Original price
$38.04
$38.04
-
$38.04
Current price
$38.04
To prevent leaks in low-pressure lines, the male threads on these fittings have an acrylic sealant already applied for extra protection. Also known as Pressure Class 125 or 150 fittings. Made of either iron or steel, they’re best in noncorrosive environments. Even with sealant, threaded connections can be taken apart for maintenance and repair.
| Pressure Rating | Low Pressure |
| Fitting Seal Type | Thread Sealant |
| Shape | Cap and Plug |
| Drive Style | External Square |
| Fitting Type | Plug |
| Fitting Connection | NPT Male |
| Pipe Size | 3/4 |
| Construction | Solid |
| Pressure Class | 150 |
| Body Shape | Square |
| Material | Steel |
| Maximum Pressure @ Temperature | 150 psi @ 72° F |
| Connects To | Pipe |
| Features | Acrylic Thread Sealant |
| For Pipe Material | Iron, Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Diesel Fuel, Gasoline, Natural Gas, Oil, Water |
| Length | 1 5/64" |
| Specifications Met | SAE J531 |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7307.99.4000 |
| USMCA Qualifying | Yes |
