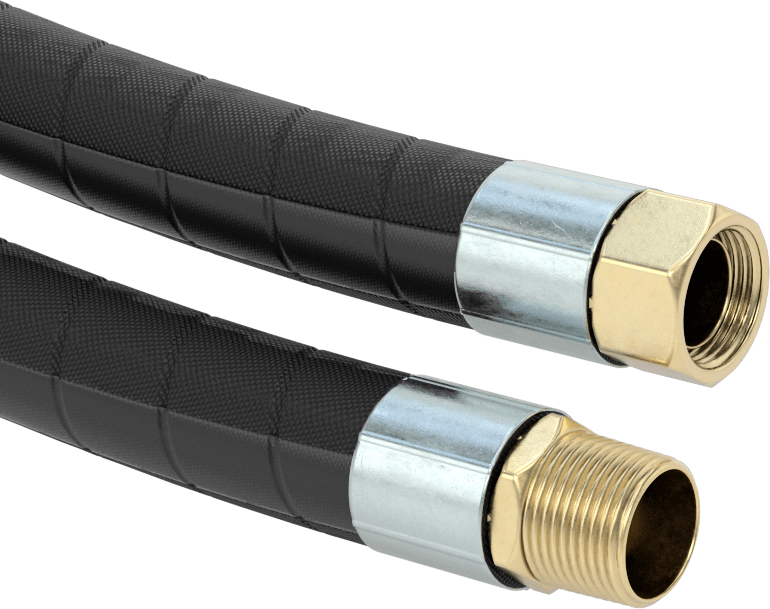

McMaster 5282K39 Low-Pressure Petroleum Hose with 3/4 NPT Male x 3/4 NPSM Female Fittings, 1-3/16" OD
Made of tough Buna-N rubber, this hose has the durability to stand up to gasoline, fuel oil, and other petroleum-based products. It is reinforced with a steel wire that provides an escape route for electrostatic buildup when used in a grounded system. It is not for use on a reel. Fittings that swivel until tightened are easy to install.
|
For Use With
|
Diesel Fuel, Fuel Oil, Gasoline (Up to 10% Ethanol) |
|
Temperature Range
|
-20° to 175° F |
|
Connection Type
|
Pipe × Pipe |
|
Fittings
|
Brass Threaded NPT Male × Brass Threaded NPSM Female (Swivels Until Tightened) |
|
Pipe Size
|
3/4 × 3/4 |
|
ID
|
3/4" |
|
OD
|
1 3/16" |
|
Bend Radius
|
3" |
|
Maximum Pressure
|
150 psi @ 72° F |
|
Maximum Vacuum
|
Not Rated |
|
Color
|
Black |
|
Clarity
|
Opaque |
|
For Use Outdoors
|
Yes |
|
Material
|
Buna-N Rubber |
|
Cover Material
|
Neoprene Rubber |
|
Interior Texture
|
Smooth |
|
Internal Reinforcement
|
Steel Wire |
|
Length
|
50 ft. |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Italy or United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
400922.0050 |
|
ECCN
|
EAR99 |
