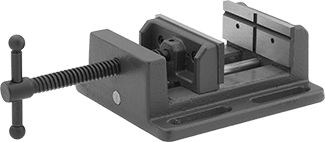

McMaster 52855A25 Drill-Press Vise Fixed Base, 8" Wide x 2" High Jaws
Original price
$491.97
-
Original price
$491.97
Original price
$491.97
$491.97
-
$491.97
Current price
$491.97
Turn the handle to move the jaw on these basic vises. They mount directly to your drill press for drilling, tapping, and reaming applications. Vises have one smooth jaw and one grooved jaw for clamping flat, round, and uneven workpieces. The open base allows you to drill through your workpiece without hitting the bottom of the vise.
|
Vise Type
|
Machine |
|
Jaw
|
|
|
Width
|
8" |
|
Height
|
2" |
|
Maximum Opening
|
8" |
|
Style
|
Flat |
|
Material
|
Steel |
|
Texture
|
Smooth and Grooved |
|
Replaceable
|
Yes |
|
Mounting Hole Diameter
|
5/16" |
|
Mounting Hole Center-to-Center
|
4 47/64" |
|
Mounting Screw Thread Size
|
M8 |
|
Overall Height
|
3 5/8" |
|
For Machine Type
|
Drill Presses |
|
Base Type
|
Fixed |
|
Body Length
|
15 1/2" |
|
Body Material
|
Iron |
|
Mount Type
|
Bolt On |
|
Mounting Fasteners Included
|
No |
|
Mounting Slots
|
|
|
Number of
|
4 |
|
Length
|
2 15/16" |
|
Width
|
5/8" |
|
Center-to-Center (A)
|
9 61/64" |
|
Center-to-Center (B)
|
9 23/64" |
|
Features
|
Open Base |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Peoples Republic of China |
|
Schedule B
|
846620.8065 |
|
ECCN
|
EAR99 |
